Steering Column/Shaft: Disassembly

KEY LOCK ASSEMBLY

1. Make a groove on head of the special bolt (A) by using a punch.

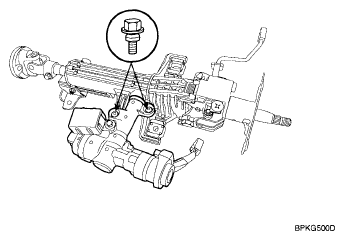

   Fig 1: Identifying Special Bolt

   Courtesy of HYUNDAI MOTOR CO.
2. Remove the key lock assembly (A) from the steering column (B) by loosing special bolts.

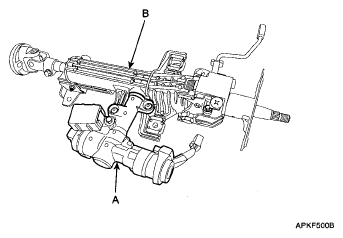

   Fig 2: Identifying Key Lock Assembly And Steering Column

   Courtesy of HYUNDAI MOTOR CO.
3. When reassembling the key lock assembly, loosely install new special bolts to the steering column shaft.

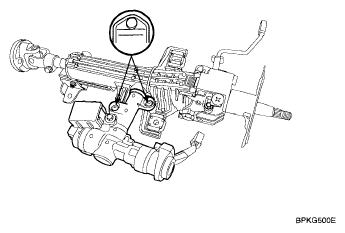

   Fig 3: Identifying Special Bolts

   Courtesy of HYUNDAI MOTOR CO.
4. Tighten the special bolt until its head is cut off.

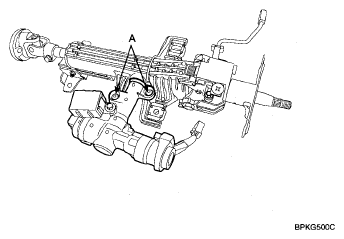

Fig 4: Identifying Special Bolts

Courtesy of HYUNDAI MOTOR CO.

UNIVERSAL JOINT ASSEMBLY

1. Remove the universal joint (B) assembly from the steering column assembly (C) by loosening the bolt (A).

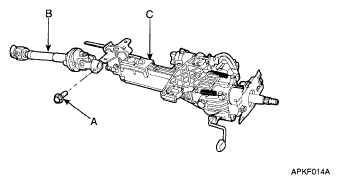

   Fig 5: Identifying Universal Joint, Steering Column Assembly And Bolt

   Courtesy of HYUNDAI MOTOR CO.
2. Reassembly is the reverse of disassembly.
