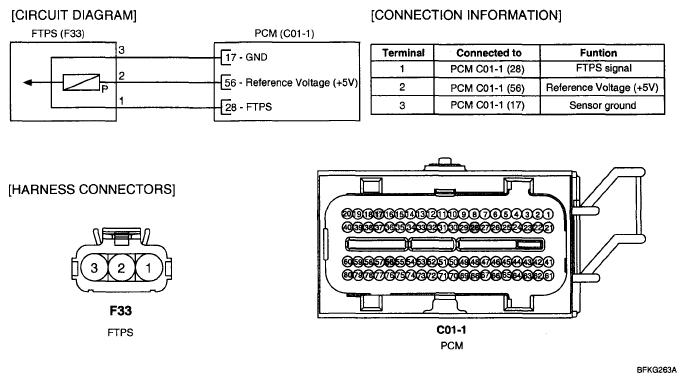

Home >> Hyundai >> 2009 >> Entourage GLS >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control/Fuel System (G6DA - GSL 3.8) >> Gasoline Engine Control System >> Fuel Tank Pressure Sensor (Ftps) >> Description >> Schematic Diagram
