Hyundai
>>
2009
>>
Entourage GLS
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Immobilizer Control System
>>
Circuit Diagram
Circuit Diagram

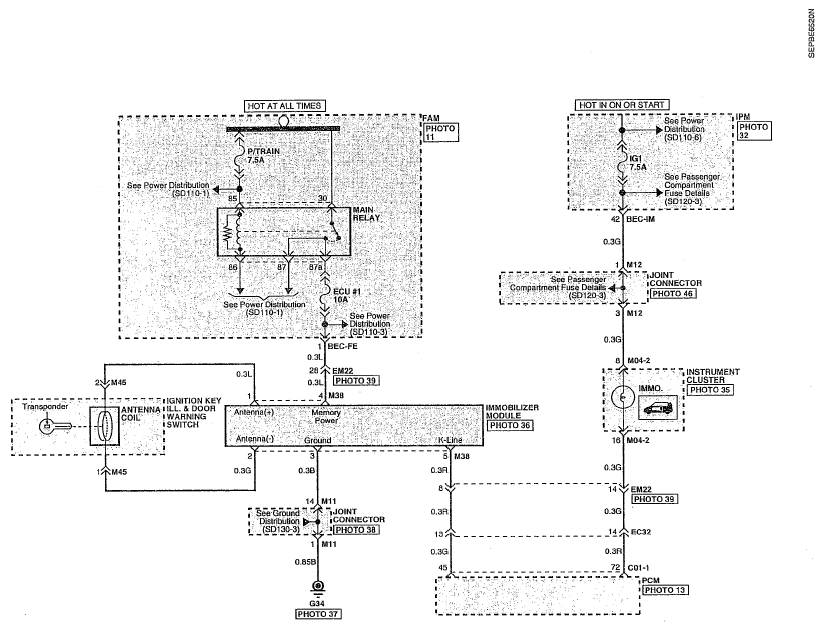

Fig 1: Immobilizer Control System - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Identifying Immobilizer Control Connector Terminal
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
