Home
>>
Hyundai
>>
2009
>>
Entourage GLS
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Audio System
>>
Audio System
>>
Troubleshooting
>>
Chart 6
Chart 6

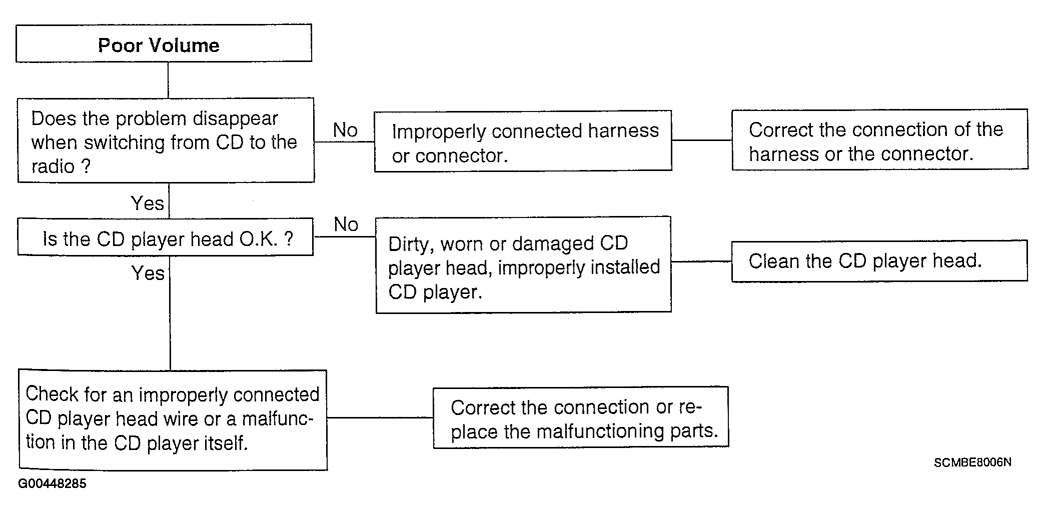

Fig 1: Troubleshooting Flow Chart - Poor Volume
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
