Chart 4

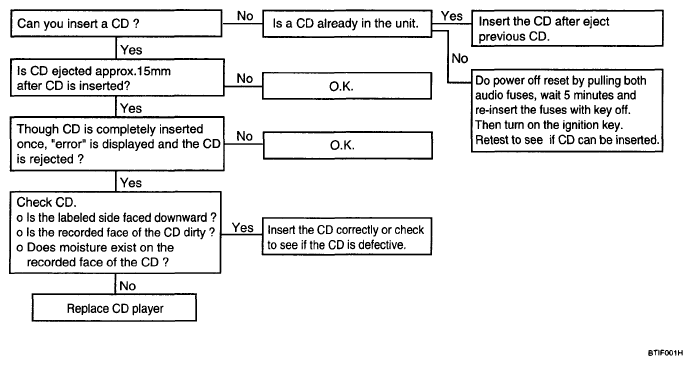

Fig 1: Troubleshooting Flow Chart - CD Will Not Be Accepted
G04802872Courtesy of HYUNDAI MOTOR CO.

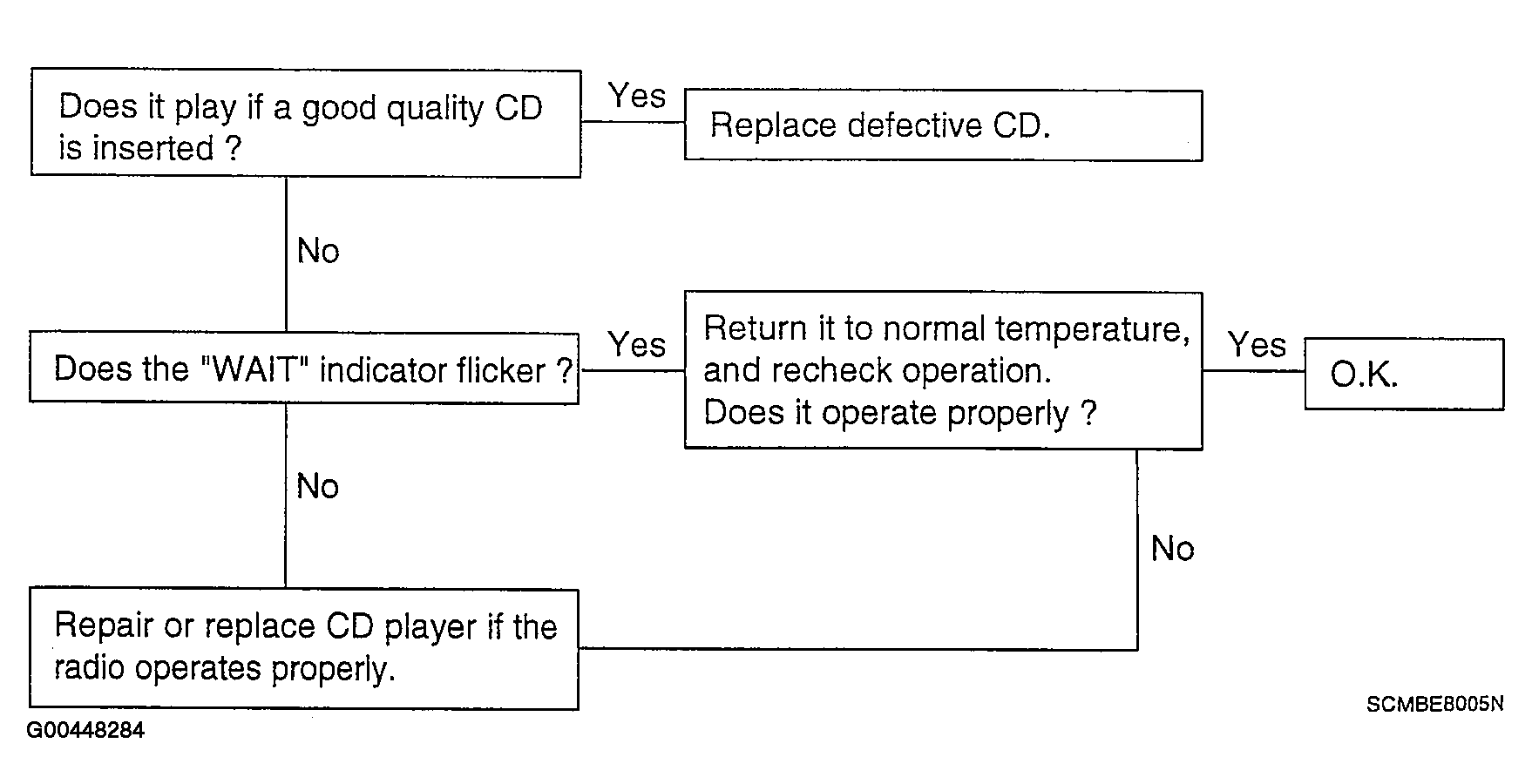

Fig 2: Troubleshooting Flow Chart - No Sound
G00448284Courtesy of HYUNDAI MOTOR CO.

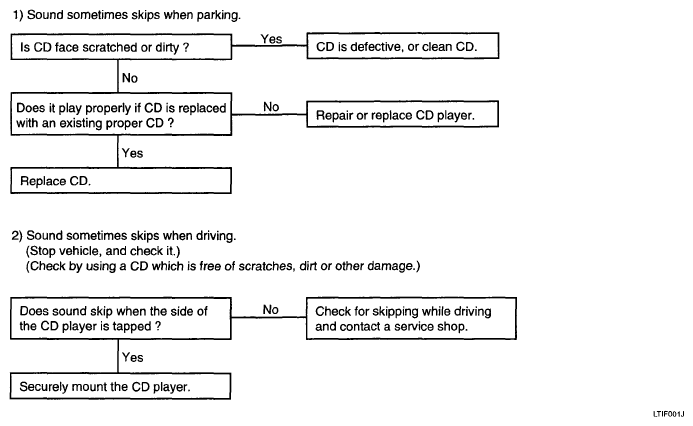

Fig 3: Troubleshooting Flow Chart - CD Sound Skips
G04802874Courtesy of HYUNDAI MOTOR CO.

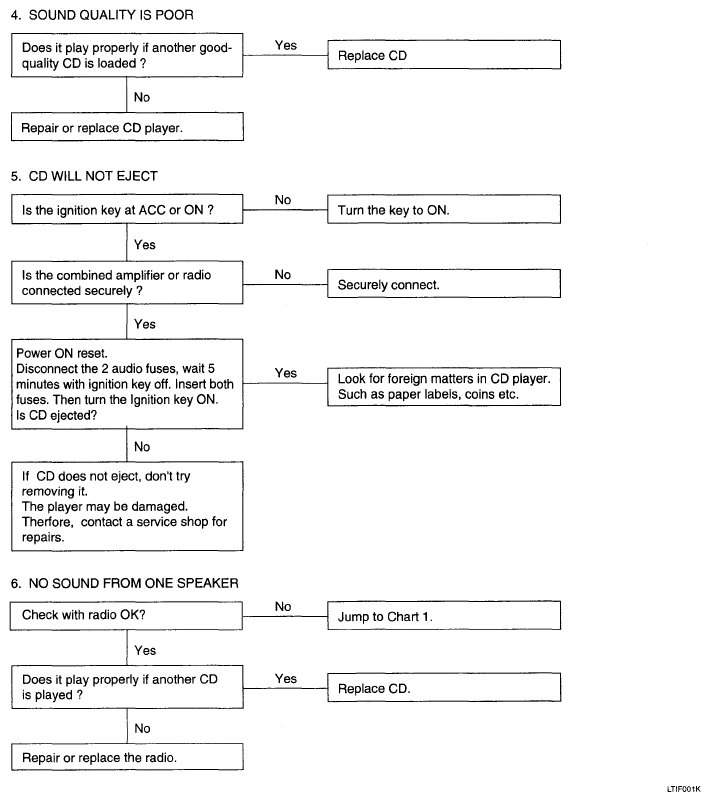

Fig 4: Troubleshooting Flow Chart - Sound Quality Is Poor
G05324811Courtesy of HYUNDAI MOTOR CO.
