Oil Pump

The oil pump is made of the aluminum (the reaction shaft support) to loose the weight and selects the parachoid type to improve the processing and the capacity efficiency at the low RPM range.

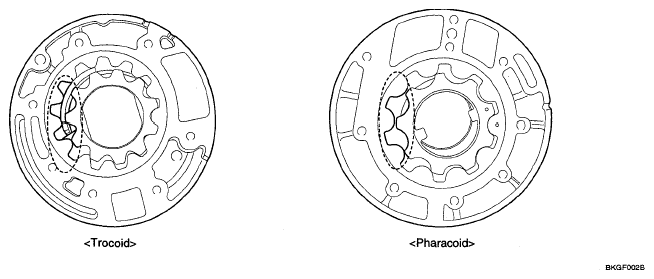

Fig 1: Oil Pump Function Diagram
G05364058Courtesy of HYUNDAI MOTOR CO.
