Automatic Transaxle: Removal

CAUTION:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
NOTE:
  • Mark all wiring and hoses to avoid bad connection.
  1. Remove the engine cover.

    (refer to ENGINE AND TRANSAXLE ASSEMBLY )

  2. Remove the battery (A) after removing the battery terminal.
    Fig 1: Identifying Battery
    G05364036Courtesy of HYUNDAI MOTOR CO.
  3. Remove the air duct assembly (A).
    Fig 2: Identifying Air Duct Assembly
    G05363996Courtesy of HYUNDAI MOTOR CO.
  4. Remove the air cleaner assembly (D) by disconnecting the AFS (Air Flow Sensor) connector (A), the clamp (B) and the ECM connector (C).
    Fig 3: Identifying Air Cleaner Assembly And ECM Connector
    G05364203Courtesy of HYUNDAI MOTOR CO.
  5. Remove the battery tray (A).
    Fig 4: Identifying Battery Tray
    G05364204Courtesy of HYUNDAI MOTOR CO.
  6. Remove the ground cable from transaxle (A).
    Fig 5: Identifying Transaxle Ground Cable
    G05364205Courtesy of HYUNDAI MOTOR CO.
  7. Disconnect the inhibitor switch connector (A), solenoid valve connector (B) and the input speed sensor connector (C).
    Fig 6: Identifying Inhibitor Switch And Solenoid Valve Connector
    G05364206Courtesy of HYUNDAI MOTOR CO.
  8. Disconnect the output speed sensor connector (A).
    Fig 7: Identifying Output Speed Sensor Connector
    G05364207Courtesy of HYUNDAI MOTOR CO.
  9. Remove the control cable assembly (A).
    Fig 8: Identifying Control Cable Assembly
    G05364208Courtesy of HYUNDAI MOTOR CO.
  10. Remove the oil cooler hoses (A).
    Fig 9: Identifying Oil Cooler Hoses
    G05364209Courtesy of HYUNDAI MOTOR CO.
  11. Install the special tools (09200-38001), the engine support fixture and the adapter on the engine assembly.
    Fig 10: Identifying Special Tools On Engine Assembly
    G05364002Courtesy of HYUNDAI MOTOR CO.
  12. Remove the transaxle upper mounting bolts (A-2ea) and the starter motor mounting bolts (B-2ea).
    Fig 11: Identifying Transaxle Upper Mounting And Starter Motor Mounting Bolts
    G05364003Courtesy of HYUNDAI MOTOR CO.
  13. After removing the four bolts, take the transaxle insulator mounting bracket (A) off.
    Fig 12: Identifying Transaxle Insulator Mounting Bracket
    G05364212Courtesy of HYUNDAI MOTOR CO.
  14. Remove the steering joint assembly bolt (A), (refer to STEERING COLUMN/SHAFT )
    Fig 13: Identifying Steering Joint Assembly Bolt
    G05364005Courtesy of HYUNDAI MOTOR CO.
  15. Remove the front wheels and tires, (refer to TIRES/WHEELS )
  16. Remove the side mud cover (A).

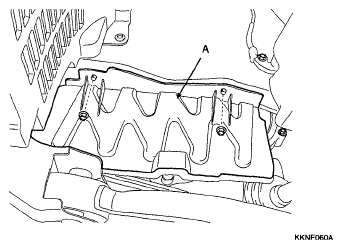

    Fig 14: Identifying Side Mud Cover
    G05364214Courtesy of HYUNDAI MOTOR CO.
  17. Remove the under shield cover (A, B).
    Fig 15: Identifying Under Shield Cover (A)
    G05364006Courtesy of HYUNDAI MOTOR CO.
    Fig 16: Identifying Under Shield Cover (B)
    G05364007Courtesy of HYUNDAI MOTOR CO.
  18. Drain the transaxle fluid by removing the oil drain plug (A).
    Fig 17: Identifying Transmission Case Drain Plug
    G05364076Courtesy of HYUNDAI MOTOR CO.
  19. Remove the lower arm ball joint mounting nut, the stabilizer link mounting nut, and the tie rod end mounting nut from the front knuckles, (refer to FRONT SUSPENSION SYSTEM )
  20. Remove the roll stopper mounting bolts (A, B).
    Fig 18: Identifying Roll Stopper Mounting Bolts (A)
    G05364008Courtesy of HYUNDAI MOTOR CO.
    Fig 19: Identifying Roll Stopper Mounting Bolts (B)
    G05364009Courtesy of HYUNDAI MOTOR CO.
  21. Remove the muffler hanger rubber (A).
    Fig 20: Identifying Muffler Hanger Rubber
    G05364010Courtesy of HYUNDAI MOTOR CO.
  22. Supporting the sub frame (A) with a jack and the Special tool (09624-38000), remove the mounting bolts. (refer to FRONT STABILIZER BAR )
    Fig 21: Supporting Sub Frame With Jack
    G05364020Courtesy of HYUNDAI MOTOR CO.
  23. Disconnect the drive shafts (A, B) from the transaxle.
    Fig 22: Identifying Drive Shafts (A)
    G05364222Courtesy of HYUNDAI MOTOR CO.
    Fig 23: Identifying Drive Shafts (B)
    G05364223Courtesy of HYUNDAI MOTOR CO.
  24. Remove the torque converter assembly mounting bolts (A-4ea).
    Fig 24: Identifying Torque Converter Assembly Mounting Bolts
    G05364224Courtesy of HYUNDAI MOTOR CO.
  25. Remove one mounting bolt from the transaxle side and the other from the engine side.
  26. Supporting the transaxle with a jack, remove the transaxle lower mounting bolts (A-3ea, B-1ea).
    Fig 25: Identifying Transaxle Lower Mounting Bolts
    G06136516Courtesy of HYUNDAI MOTOR CO.
  27. Lowering the jack slowly, remove the transaxle.
    CAUTION: When removing the transaxle assembly, be careful not to damage any surrounding parts or body components.
