Timing Belt: Components

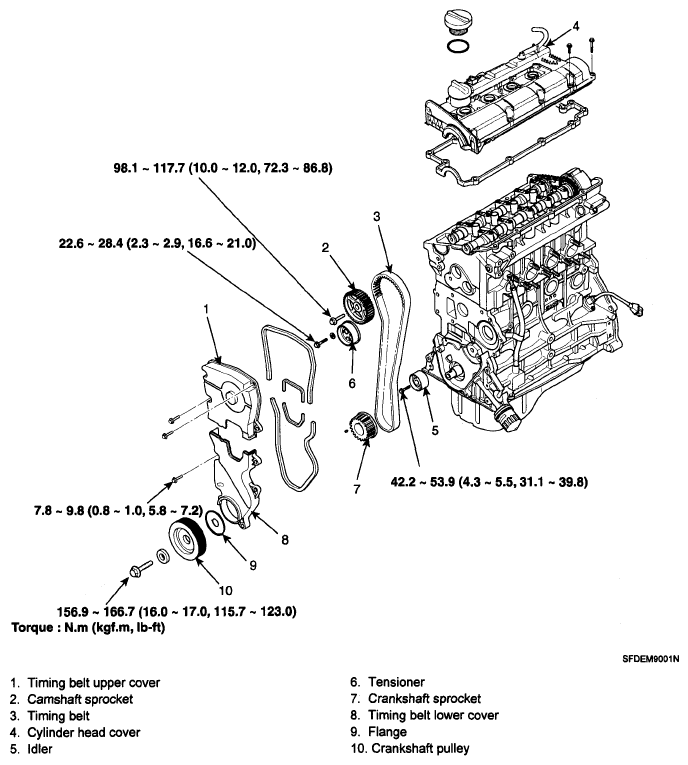

Fig 1: Timing Belt Components With Torque Specifications

G06135739

Courtesy of HYUNDAI MOTOR CO.
