Selection Of Engine Oil: Notes

Recommended ILSAC classification : Above GF3

Recommended API classification : Above SJ or SL

Recommended SAE viscosity grades :

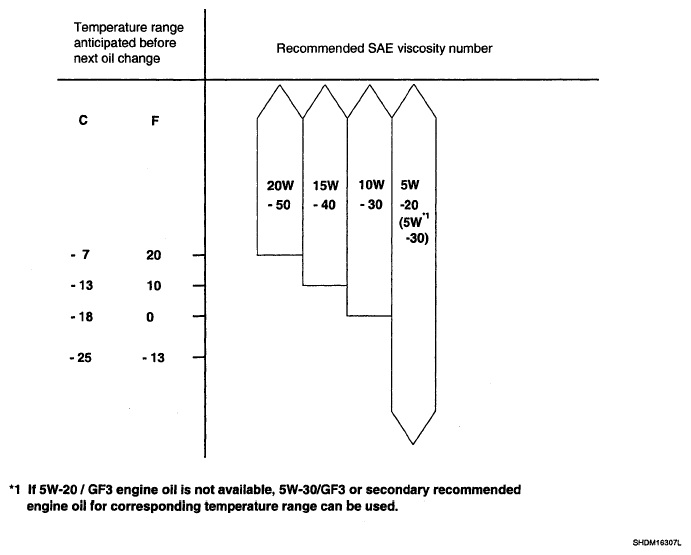

Fig 1: Recommended SAE Viscosity Grades Chart
G05363572Courtesy of HYUNDAI MOTOR CO.
NOTE: For best performance and maximum protection of all types of operation, select only those lubricants which :
  1. Satisfy the requirement of the API classification.
  2. Have proper SAE grade number for expected ambient temperature range.

Lubricants that do not have both an SAE grade number and API service classification on the container should not be used.
