Home >> Hyundai >> 2009 >> Elantra Touring Automatic >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Components

Lubrication System: Components

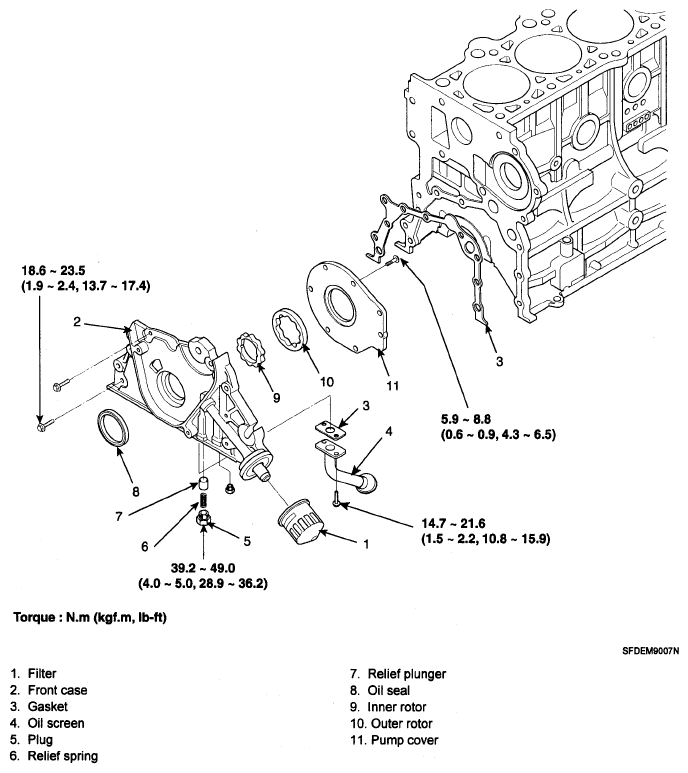

Fig 1: Identifying Lubrication System Components

G06135894

Courtesy of HYUNDAI MOTOR CO.
