Charging System: Battery: Components

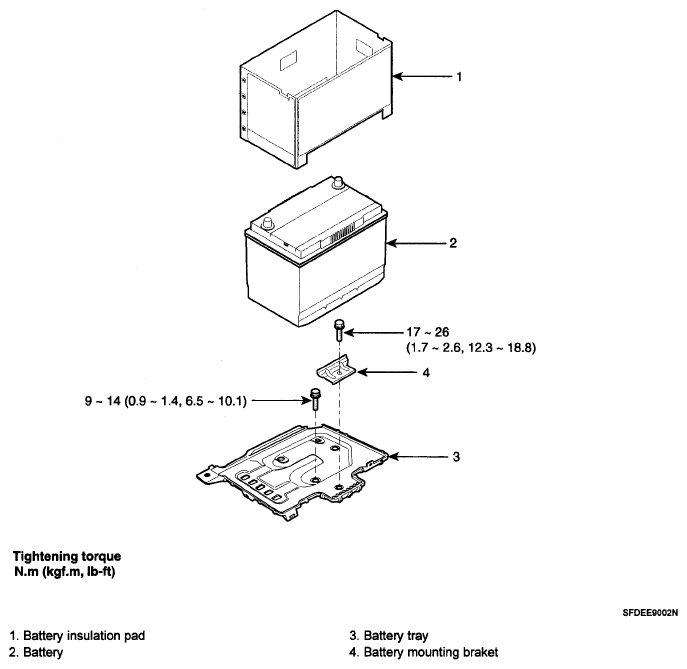

Fig 1: Identifying Battery Components

G06135960

Courtesy of HYUNDAI MOTOR CO.
