Charging System: Alternator: Disassembly

Remove the alternator cover (A) after removing three nuts (B).

Fig 1: Locating Alternator Cover And Nuts
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting bolts (A) and disconnect the brush holder assembly (B).

Fig 2: Locating Mounting Bolts And Brush Holder Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the slip ring guide (A).

Fig 3: Locating Slip Ring Guide
Courtesy of HYUNDAI MOTOR CO.
Remove the nut, pulley (A) and spacer.

Fig 4: Locating Nut, Pulley And Spacer
Courtesy of HYUNDAI MOTOR CO.

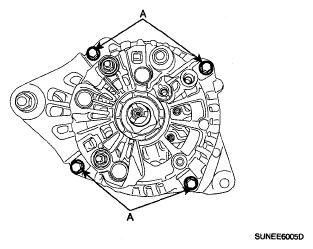

Loosen the 4 through bolts (A).

Fig 5: Locating Through Bolts
Courtesy of HYUNDAI MOTOR CO.
Disconnect the rotor (A) and cover (B).

Fig 6: Locating Rotor And Cover
Courtesy of HYUNDAI MOTOR CO.
Reassembly is the reverse of disassembly.
