ESC Operation Mode: Notes

  1. STEP 1

    The ESC analyzes the intention of the driver.

    Fig 1: ESC Analyzes For Intention Driver
    G04881010Courtesy of HYUNDAI MOTOR CO.
  2. STEP 2

    It analyzes the movement of the ESC vehicle.

    Fig 2: ESC Analyzes For Movement ESC Vehicle
    G06144923Courtesy of HYUNDAI MOTOR CO.
  3. STEP 3

    he HECU calculates the required strategy, then actuates the appropriate valves and sends torque control requests via CAN to maintain vehicle stability.

  1. ESC Non-operation-Normal braking.
    INLET AND OUTLET VALVE POSITION

      Inlet valve (EV) Outlet valve (AV) Pilot valve (USV) High pressure switch valve (HSV) Pump motor
    Normal braking Open Close Open Close OFF

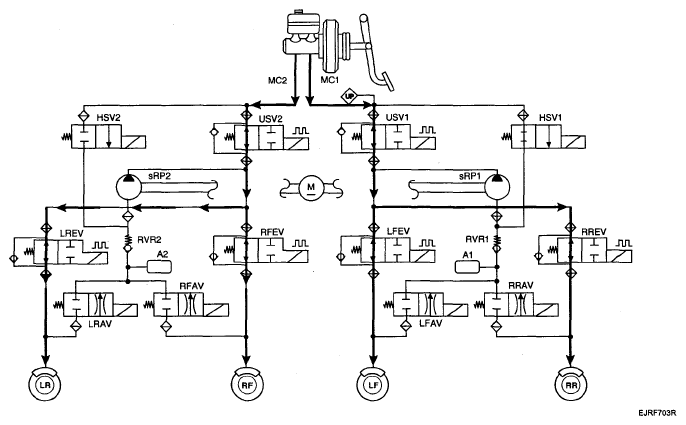

    Fig 3: ESC Non-Operation-Normal Braking - Circuit Diagram
    G04892758Courtesy of HYUNDAI MOTOR CO.
    NOTE: EV: Inlet Valve
    AV: Outlet Valve
    LR: Rear left wheel
    RF: Front right wheel
    LF: Front left wheel
    RR: Rear right wheel
    PE: Pump motor
    USV: Pilot Valve
    HSV: High pressure Switch Valve
  2. ESC INCREASE MODE
    INLET AND OUTLET VALVE POSITION

      Inlet valve (EV) Outlet valve (AV) Pilot valve (USV) High pressure switch valve (HSV) Pump motor
    Normal braking Open Close Close (Partial) Open ON (Motor speed control)

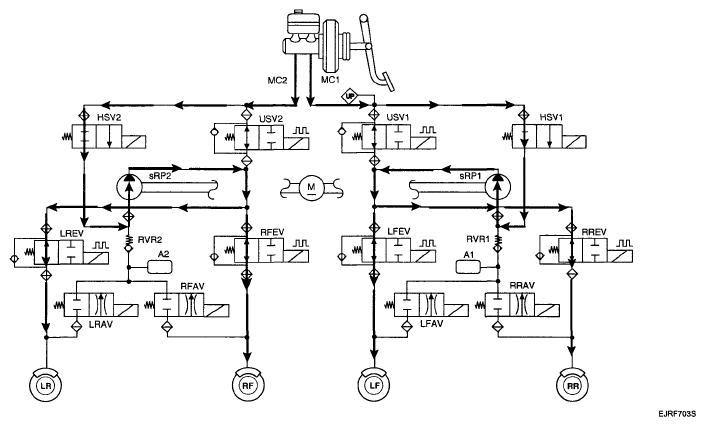

    Fig 4: ESC Increase Mode - Circuit Diagram
    G04892759Courtesy of HYUNDAI MOTOR CO.
    NOTE: EV: Inlet Valve
    AV: Outlet Valve
    LR: Rear left wheel
    RF: Front right wheel
    LF: Front left wheel
    RR: Rear right wheel
    PE: Pump motor
    USV: Pilot Valve
    HSV: High pressure Switch Valve
  3. ESC HOLD MODE (FR is only controlled.)
    INLET AND OUTLET VALVE POSITION

      Inlet valve (EV) Outlet valve (AV) Pilot valve (USV) High pressure switch valve (HSV) Pump motor
    Normal braking Close Close Close (Partial) Open OFF

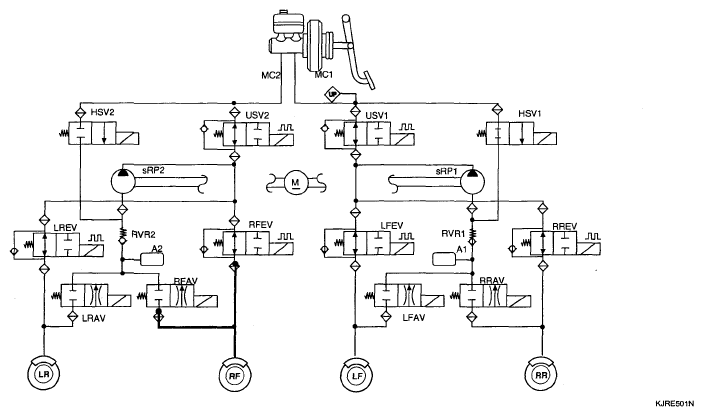

    Fig 5: ESC Hold Mode - Circuit Diagram
    G04892760Courtesy of HYUNDAI MOTOR CO.
    NOTE: EV: Inlet Valve
    AV: Outlet Valve
    LR: Rear left wheel
    RF: Front right wheel
    LF: Front left wheel
    RR: Rear right wheel
    PE: Pump motor
    USV: Pilot Valve
    HSV: High pressure Switch Valve
  4. ESC DECREASE MODE (FR is only controlled)
    INLET AND OUTLET VALVE POSITION

      Inlet valve (EV) Outlet valve (AV) Pilot valve (USV) High pressure switch valve (HSV) Pump motor
    Normal braking Close Open Close (Partial) Open ON (Motor speed low control)

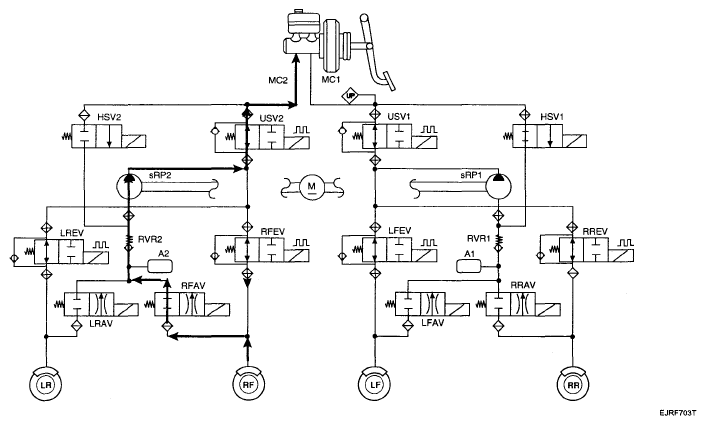

    Fig 6: ESC Decrease Mode - Circuit Diagram
    G04892761Courtesy of HYUNDAI MOTOR CO.
    NOTE: EV: Inlet Valve
    AV: Outlet Valve
    LR: Rear left wheel
    RF: Front right wheel
    LF: Front left wheel
    RR: Rear right wheel
    PE: Pump motor
    USV: Pilot Valve
    HSV: High pressure Switch Valve
