Power Windows: Troubleshooting

  1. No windows operate from the main switch on the driver's door.
    Fig 1: Troubleshooting Flow Chart - No Windows Operate From Main Switch On Driver's Door
    G05365509Courtesy of HYUNDAI MOTOR CO.
  2. Driver's side window does not operate.
    Fig 2: Troubleshooting Flow Chart - Driver's Side Window Does Not Operate
    G05365510Courtesy of HYUNDAI MOTOR CO.
  3. Passenger's side window does not operate.

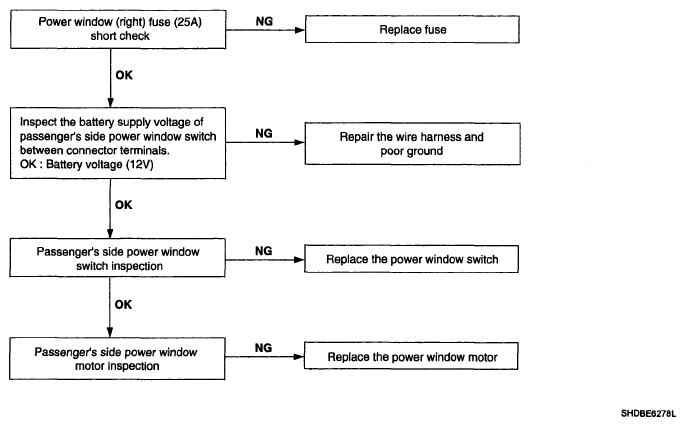

    Fig 3: Troubleshooting Flow Chart - Passenger's Side Window Does Not Operate
    G06145480Courtesy of HYUNDAI MOTOR CO.
