Power Window Main Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim.
(Refer to "FRONT DOOR ")
Disconnect the connector from the switch.

Fig 1: Identifying Power Window Main Switch
Courtesy of HYUNDAI MOTOR CO.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

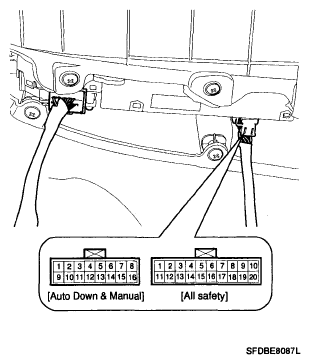

Fig 2: Identifying Power Window Main Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.

[ALL SAFETY]

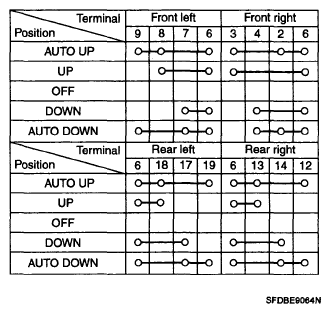

Fig 3: All Safety Terminals Position Chart
Courtesy of HYUNDAI MOTOR CO.

[AUTO DOWN]

Fig 4: Auto Down Terminals Position Chart
Courtesy of HYUNDAI MOTOR CO.

[ALL SAFETY WINDOW]

Fig 5: All Safety Window Terminals Position Chart
Courtesy of HYUNDAI MOTOR CO.

[AUTO DOWN POWER WINDOW]

Fig 6: Auto Down Power Window Terminals Position Chart
Courtesy of HYUNDAI MOTOR CO.
