Front Hub / Knuckle: Reassembly

WARNING: This page is about a different car, the 2007 Hyundai Entourage. However, it is still accessible from the selected car via links, so may be relevant.

Reassembly is the reverse of disassembly.
Measure the wheel bearing starting torque.
Starting torque: 1.97 Nm (20 kgf.cm, 1.45 lb-fr)

Fig 1: Measuring Wheel Bearing Starting Torque
Courtesy of HYUNDAI MOTOR CO.
Measure the hub assembly axial play using a dial gauge.

Axial play: 0.008 mm or less

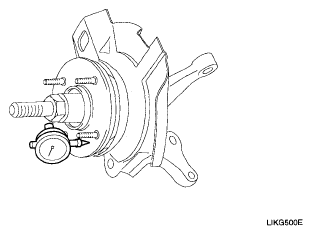

Fig 2: Measuring Hub Assembly Axial Play Using Dial Gauge

Courtesy of HYUNDAI MOTOR CO.
