Cluster Replacement

WARNING: This page is about a different car, the 2009 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Tilt the steering column down.
  2. After remove the cluster facia panel (A), disconnecting the trip sensor connector (B).

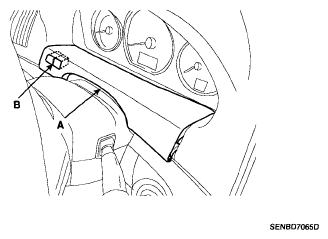

    Fig 1: Identifying Trip Sensor Connector And Cluster Facia Panel
    G05331118Courtesy of HYUNDAI MOTOR CO.
  3. After loosening the mounting screws, then remove the cluster (A).

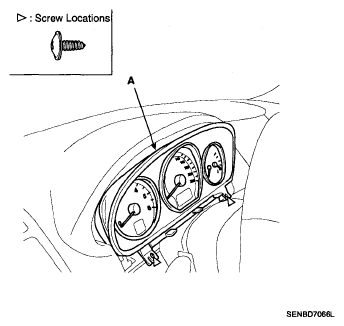

    Fig 2: Identifying Cluster
    G05331119Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse the removal.
    NOTE:
    • Make sure the connector is plugged in properly.
