Console Extension Cover

WARNING: This page is about a different car, the 2009 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the extension cover (A).

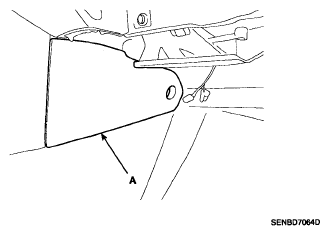

    Fig 1: Identifying Extension Cover
    G05331116Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
