Power Supply Circuit Inspection

  1. Ignition "ON" & Engine "OFF".
  2. Disconnect the "PCM/TCM" connector.
  3. Measure voltage between terminal No"49" of TCM harness connector and chassis ground and then terminal No"50" of the TCM harness connector and chassis ground.

    Specification: approx. 12V

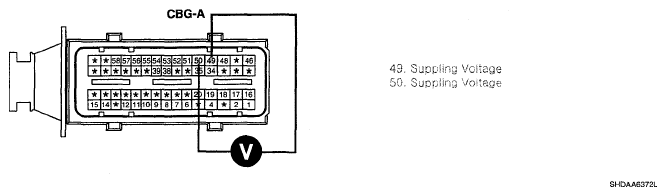

    Fig 1: Measuring Resistance Between TCM Connector Terminal 49 And 50
    G05364193Courtesy of HYUNDAI MOTOR CO.
  4. Is voltage within specifications?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. And go to VERIFICATION OF VEHICLE REPAIR  procedure.

    NO

    • Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
