Power Supply Circuit Inspection

Ignition "ON" & Engine "OFF".
Disconnect the "INPUT SPEED SENSOR" connector.
Measure voltage between terminal "3" of the INPUT SPEED SENSOR harness connector and chassis ground.
Specification: approx. B+

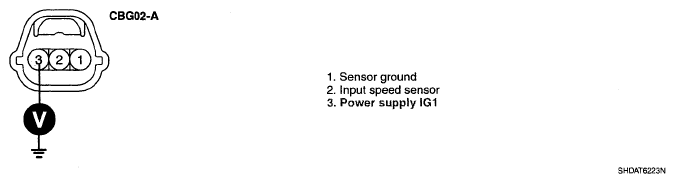

Fig 1: Measuring Voltage Between Input Speed Sensor Connector Terminal 3 And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within specifications?
YES
- Go to "GROUND CIRCUIT INSPECTION " procedure.
  NO
  - Check for open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
