Signal Circuit Inspection

Measure resistance between each terminal of the sensor harness connector and TCM (PCM) harness connector as below.

Specification:

RESISTANCE SPECIFICATION

Pin No of "TRANSAXLE RANGE SWITCH"	CBG01 No. 1	CBG01 No. 7	CBG01 No. 6	CBG01 No. 2	CBG01 No. 5	CBG01 No. 3
Pin No of "TCM (PCM)" harness	CBG-A No. 6	CBG-A No. 7	CBG-A No. 8	CBG-A No. 9	CBG-A No. 11	CBG-A No. 12
Specification	0Ω	0Ω	0Ω	0Ω	0Ω	0Ω

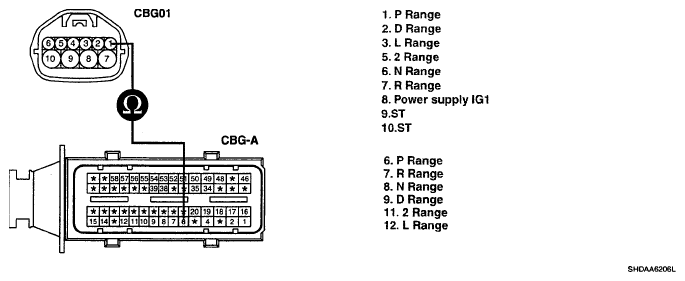

Fig 1: Measuring Resistance Between Transaxle Range Switch Terminal 1 And TCM (PCM) Terminal 6

Courtesy of HYUNDAI MOTOR CO.

Is resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
  NO
- Check for Open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
