DTC P0196 Engine Oil Temp. Sensor Range/Performance
>>
Signal Waveform And Data
Signal Waveform And Data

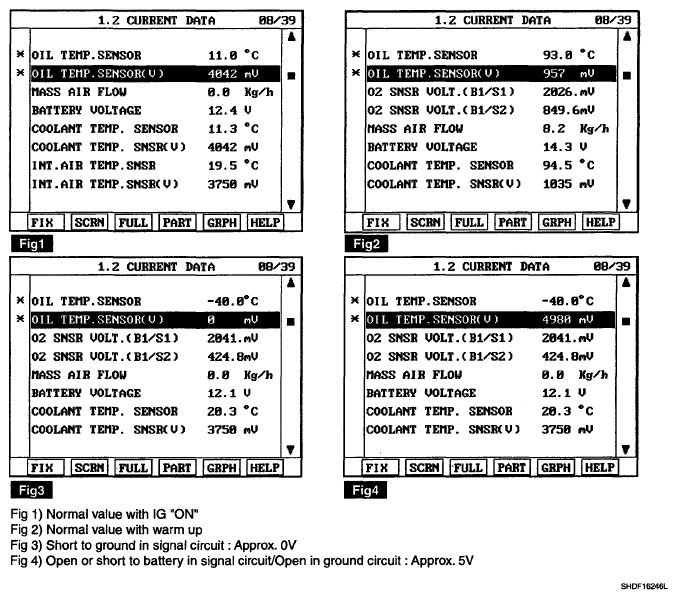

Fig 1: Scan Tool Display - Temp. Sensor In Current Data
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
