Charging System: Alternator: Replacement

  1. Disconnect the battery negative terminal (A) then the positive terminal (A)

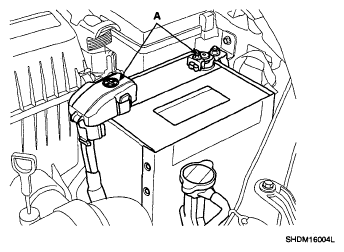

    Fig 1: Identifying Battery Negative Terminal And Positive Terminal
    G05363620Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the generator connector (A) and "B" terminal cable from the generator. Loosen the clip (B).

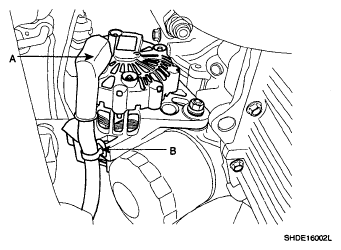

    Fig 2: Identifying Generator Connector And Clip
    G05363621Courtesy of HYUNDAI MOTOR CO.
  3. Remove the adjusting bolt (A), mounting bolt (B), the generator belt (C) and the generator mounting bracket (D).
  4. Pull out the through bolt, then remove the generator (E).

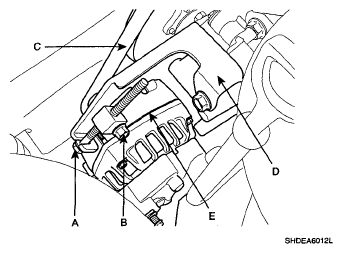

    Fig 3: Identifying Adjusting Bolt, Mounting Bolt, Generator Belt And Generator Mounting Bracket
    G05363622Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
  6. Adjust the generator belt tension after installation.
