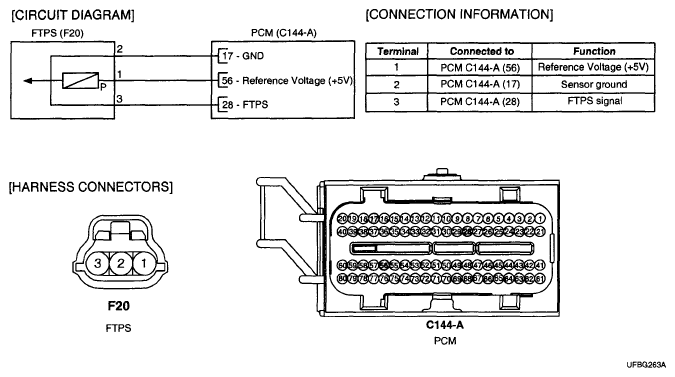

Home >> Hyundai >> 2009 >> Azera Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control/Fuel System (G6DB/G6DA - GSL 3.3/3.8) >> Gasoline Engine Control System >> Fuel Tank Pressure Sensor (Ftps) >> Schematic Diagram
