Audio Remote control
>>
Troubleshooting
>>
Chart 6
Chart 6

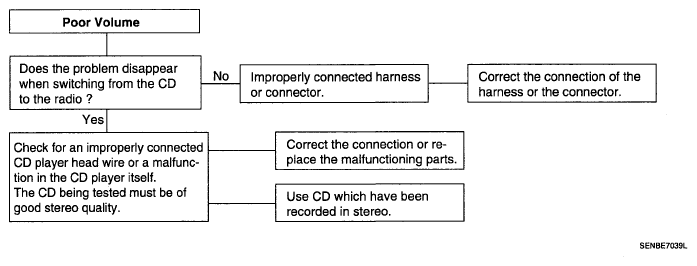

Fig 1: Problem Analysis Flow Chart 6
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
