Chart 4

CD WILL NOT BE ACCEPTED

Fig 1: Problem Analysis Flow Chart 4 - CD Will Not Be Accepted
Courtesy of HYUNDAI MOTOR CO.
NO SOUND

Fig 2: Problem Analysis Flow Chart 4 - No Sound
Courtesy of HYUNDAI MOTOR CO.
CD SOUND SKIPS
1. Sound sometimes skips when parking.

  Fig 3: Problem Analysis Flow Chart 4 - CD Sound Skips (1 Of 2)
  Courtesy of HYUNDAI MOTOR CO.
2. Sound sometimes skips when driving.
  (Stop vehicle, and check it.)

  (Check by using a CD which is free of scratches, dirt or other damage.)

  Fig 4: Problem Analysis Flow Chart 4 - CD Sound Skips (2 Of 2)
  Courtesy of HYUNDAI MOTOR CO.
SOUND QUALITY IS POOR

Fig 5: Problem Analysis Flow Chart 4 - Sound Quality Is Poor
Courtesy of HYUNDAI MOTOR CO.
CD WILL NOT EJECT

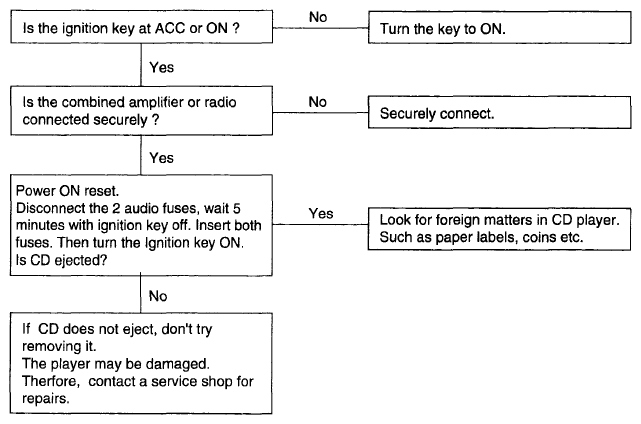

Fig 6: Problem Analysis Flow Chart 4 - CD Will Not Eject
Courtesy of HYUNDAI MOTOR CO.
NO SOUND FROM ONE SPEAKER

Fig 7: Problem Analysis Flow Chart 4 - No Sound From One Speaker
Courtesy of HYUNDAI MOTOR CO.
