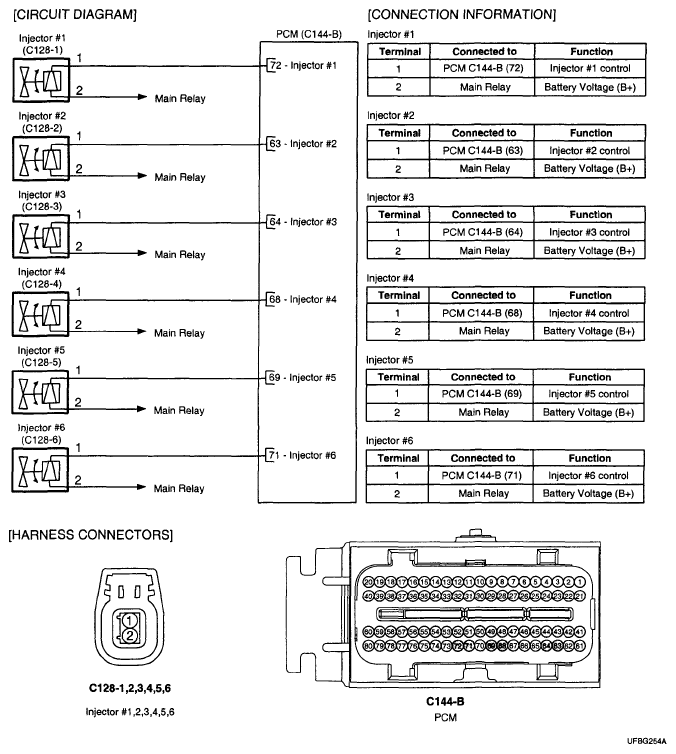

Home >> Hyundai >> 2009 >> Azera GLS >> Repair and Diagnosis (Single Page) >> Engine Performance >> Engine Control Systems >> Engine Control/Fuel System (G6DB/G6DA - GSL 3.3/3.8) >> Gasoline Engine Control System >> Injector >> Schematic Diagram
