Rear Wheel Speed Sensor: Removal

  1. Remove the rear wheel speed sensor connector (A).

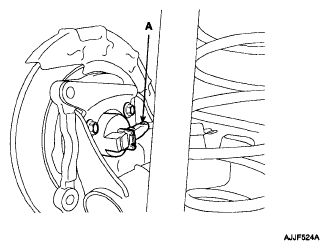

    Fig 1: Identifying Rear Wheel Speed Sensor Connector
    G04802657Courtesy of HYUNDAI MOTOR CO.
  2. Remove the rear seat assembly. (Refer to "REAR SEAT .")
  3. Remove the rear wheel speed house trim and rear pillar trim. Disconnect the rear wheel speed sensor connector (A).

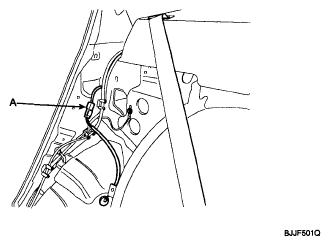

    Fig 2: Identifying Rear Wheel Speed Sensor Connector
    G04802658Courtesy of HYUNDAI MOTOR CO.
