Abs Connector Input/Output

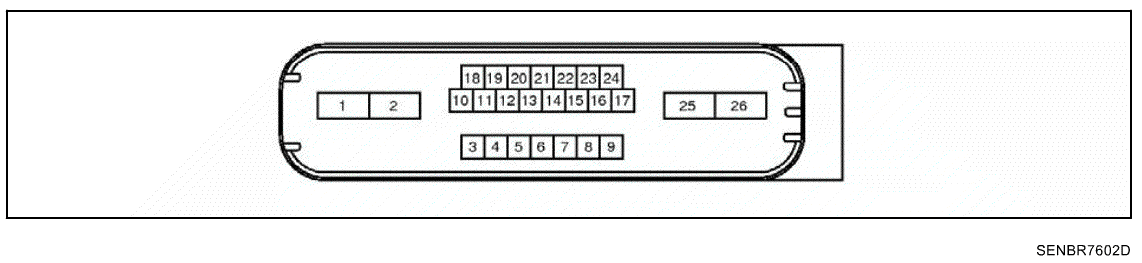

Fig 1: ABS Connector Input/Output

Courtesy of HYUNDAI MOTOR CO.

CONNECTOR TERMINAL SPECIFICATION

Connector Terminal		Specification	Remark
No	Description	Specification	Remark
3	IGNITION1 (+)	Over voltage range: 17 + 0.5V Operating voltage range: 9.5 +- 0.5V <V < 17 +- 0.5V Low voltage range: 7.0 +- 0.5V < V < 9.5 +- 0.5V Max. current: I < 300mA
2	POS. BATTERY. (SOLENOID)	Max leakage current: I < 0.8 mA Operating voltage range: 9.5 ± 0.5 V < V < 17 ± 0.5 V Max current: I < 40 A
1	POS, BATTERY. (MOTOR)	Operating voltage range: 9.5 ± 0.5 V < V < 16.5 ± 0.5 V Rush current: I < 100 A Max current: I < 40 A Max leakage current: I < 0.2 mA
26	GROUND	Rated current: I < 300 mA Max. current: I < 40 A
25	PUMP MOTOR GROUND	Rush current: I < 100 A Max current: I < 40 A
14	BRAKE LIGHT SWITCH	Input voltage low: 0 V ≤ V ≤ 3.0 V Input voltage High: 7.0 V ≤ V ≤ 16.0 V
23	SENSOR FRONT LEFT POWER	Output voltage: IGN[V] ± 1V Output current: Max 30mA
17	SENSOR FRONT RIGHT POWER
9	SENSOR REAR LEFT POWER
15	SENSOR REAR RIGHT POWER
22	SENSOR FRONT LEFT SIGNAL	Input current LOW: 5.9 ~ 8.4 mA Input current HIGH: 11.8 ~ 16.8 mA Frequency range: 1 ~ 2000 Hz Input duty: 50 ± 20 %
24	SENSOR FRONT RIGHT SIGNAL
8	SENSOR REAR LEFT SIGNAL
16	SENSOR REAR RIGHT SIGNAL
11	DIAGNOSIS INPUT/OUTPUT	Input voltage: VI_L < 0.3 IGN[V] VI_H > 0.7 IGN[V] Output voltage: VO_L < 0.2 IGN[V] VO_H > 0.8 IGN[V]
4	SENSOR FRONT RIGHT OUTPUT	Maximum Current: I < 16mA External pull up resister: 1kΩ < R Output duty: 50 ± 20 %
5	ABS/EBD W/LAMP DRIVE	Current: I <200mA (12V) Voltage Range: 0~ 18V Min. shunt Resistance: 500kΩ
6	CAN BUS LINE (HIGH)
13	CAN BUS LINE (LOW)
