Monitor Scantool Data

  1. Connect scantool to Data Link Connector (DLC).
  2. Engine start.
  3. Monitor the "Fuel pump relay" parameters on the scantool.

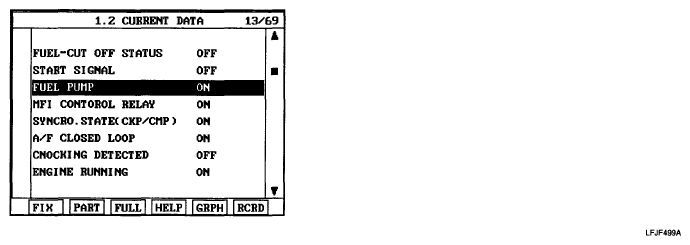

    Fig 1: Scan Tool Display - Fuel Pump
    G04801675Courtesy of HYUNDAI MOTOR CO.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was-repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
