Component Inspection

Check IATS resistance.

IG "OFF".
Disconnect IATS connector.

Measure resistance between terminal 3 and 4 of IATS connector (Component Side).

Specification:

DTC P0113 RESISTANCE SPECIFICATION

Temperature		Resistance [kΩ]
°C	°F	Resistance [kΩ]
-40	-40	40.93 ~ 48.35kΩ
-20	-4	13.89 ~ 16.02kΩ
0	32	5.38 ~ 6.08kΩ
20	68	2.31 ~ 2.56kΩ
40	104	1.08 ~ 1.21kΩ
60	140	0.54 ~ 0.62kΩ
80	176	0.29 ~ 0.34kΩ

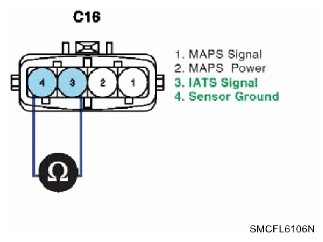

Fig 1: Measuring Resistance Between Terminal 3 And 4 Of IATS Connector

G06130141

Courtesy of HYUNDAI MOTOR CO.

Is the measured resistance within specification?
YES
- Go to " 2 Check ECM/PCM" as follows.
NO
- Substitute with a known - good IATS and check for proper operation.
- If the problem is corrected, replace IATS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

Check ECM/PCM.
1. IG "OFF" and disconnect MAFS/MAPS connector.
2. Connect scantool and Key "ON".
3. Select simulation function on scantool.
4. Simulate voltage at terminal 3 of IATS signal connector.

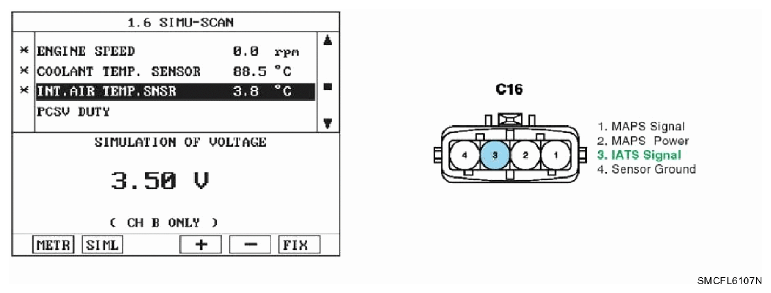

  Fig 2: Scan Tool Display - Engine Speed
  Courtesy of HYUNDAI MOTOR CO.
5. Does the signal value of IATS change according to simulation voltage?
  YES
  - Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known - good ECM/PCM and check for proper operation.
  - If the problem is corrected, replace ECM/PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
