Automatic Transaxle System: Troubleshooting: Notes

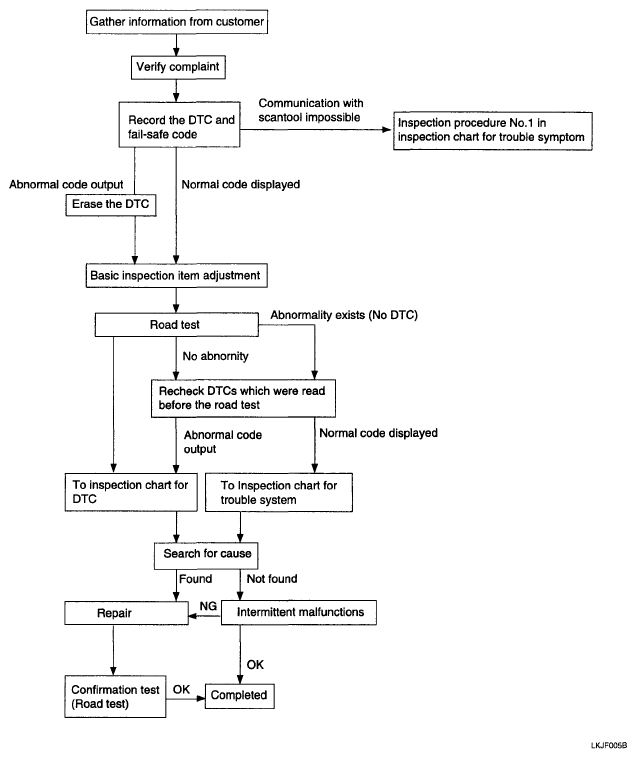

Fig 1: Flow Chart - Troubleshooting

G04802056

Courtesy of HYUNDAI MOTOR CO.
