Accent GLS, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle System (A4AF3)
>>
Automatic Transaxle System
>>
Mechanical System
>>
Function
>>
"R" Range
"R" Range
Operating elements: Front Clutch, Low & Reverse Brake

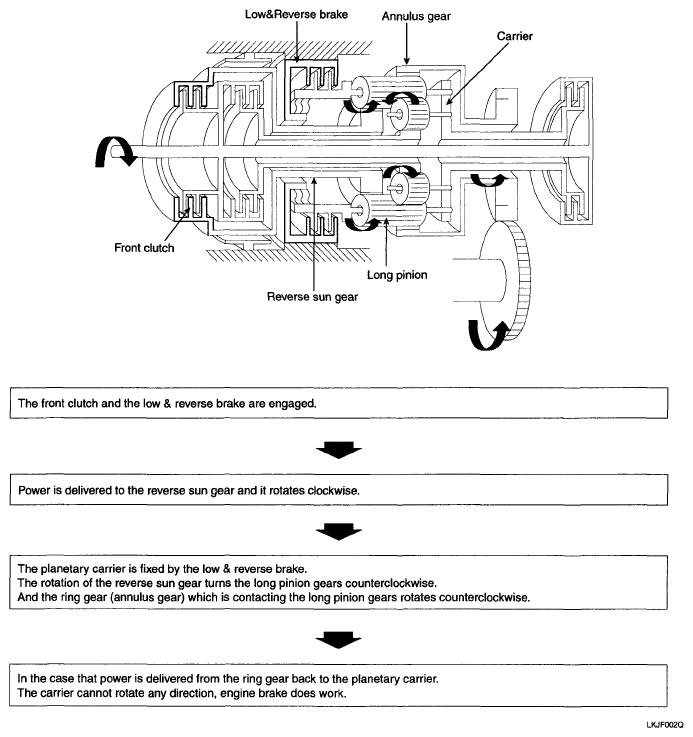

Fig 1: Operation Diagram - "R" Range
