Mechanical System: Components

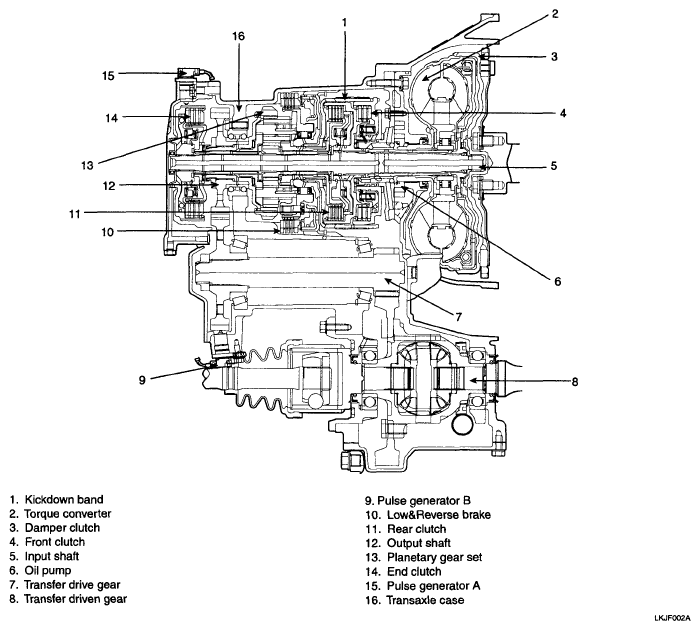

Fig 1: Identifying Mechanical System Components

G04802015

Courtesy of HYUNDAI MOTOR CO.
