Signal Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect "TRANSAXLE RANGE SWITCH" and "PCM" connector.
  3. Measure resistance between each terminal of the sensor harness connector and PCM harness connector as below.

    Specification: Shown below

    SIGNAL REFERENCE CHART

    RANGE L 2 P R D N
    Pin No of "TRANSAXLE RANGE SWITCH C11 No.2 C11 No.4 C11 No.9 C11 No.10 C11 No.11 C11 No.12
    Pin No of "PCM" harness C01-1 No.68 C01-1 No.89 C01-1 No.67 C01-1 No.88 C01-1 No.66 C01-1 No.91
    Specification 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω

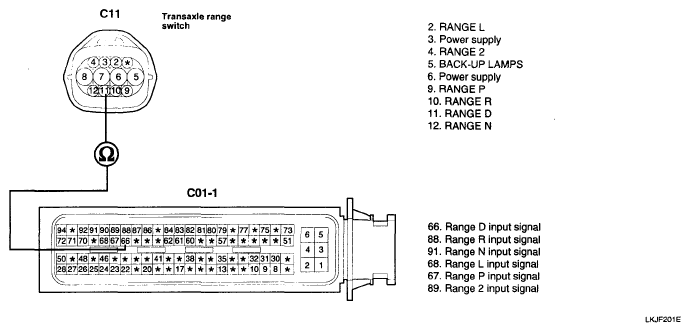

    Fig 1: Measuring Resistance Between Terminal Of Sensor Harness Connector & PCM Harness Connector
    G04802066Courtesy of HYUNDAI MOTOR CO.
  4. Is resistance within specifications?

    YES  : --> Go to "COMPONENT INSPECTION " procedure.

    NO  : --> Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
