Component (1): Notes

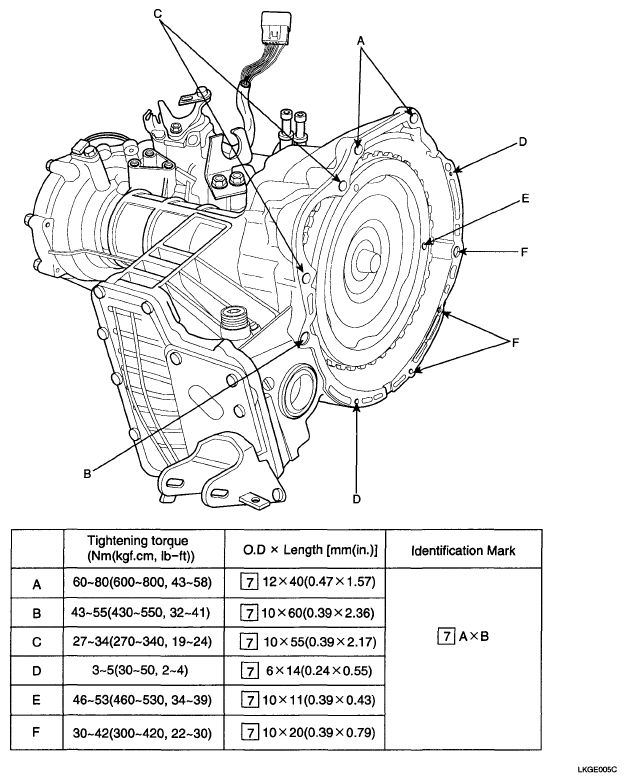

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (1 Of 6)

G04802147

Courtesy of HYUNDAI MOTOR CO.
