Home >> Hyundai >> 2009 >> Accent GLS, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (1 Of 2) >> P0130 O2 Sensor Circuit (Bank 1/Sensor 1) >> Schematic Diagram

Schematic Diagram

(A/T)

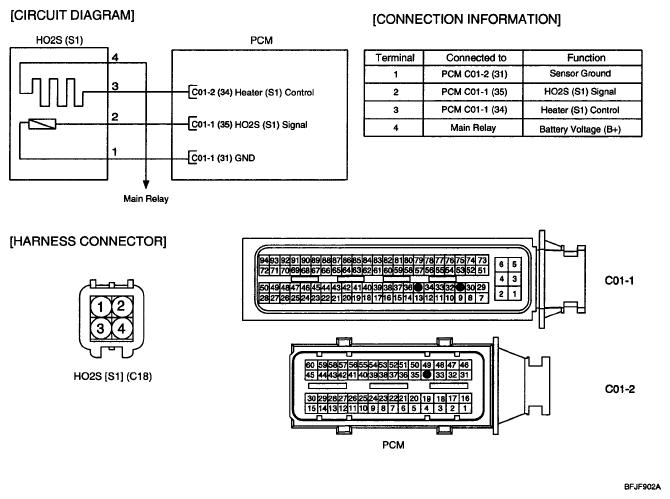

Fig 1: HO2S And PCM Schematic Diagram (A/T)

G04801535

Courtesy of HYUNDAI MOTOR CO.

(M/T)

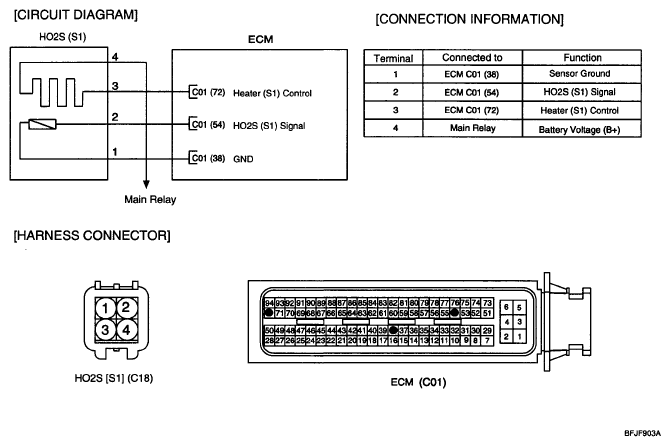

Fig 2: HO2S And ECM Schematic Diagram (M/T)

G04801536

Courtesy of HYUNDAI MOTOR CO.
