Charging System
CHARGING SYSTEM CHART
| Items | Specification | |
|---|---|---|
| 1.6 CVVT | ||
| Generator | Type | I.C. regulator built-in |
| Rate voltage | 13.5 V, 90A | |
| Speed in use | 1,000 ~ 18,000 rpm | |
| Voltage regulator | Electronic built-in type | |
| Regulator setting voltage | 14.55 ± 0.2 V | |
| Temperature compensation | -7 ± 3 mV / °C | |

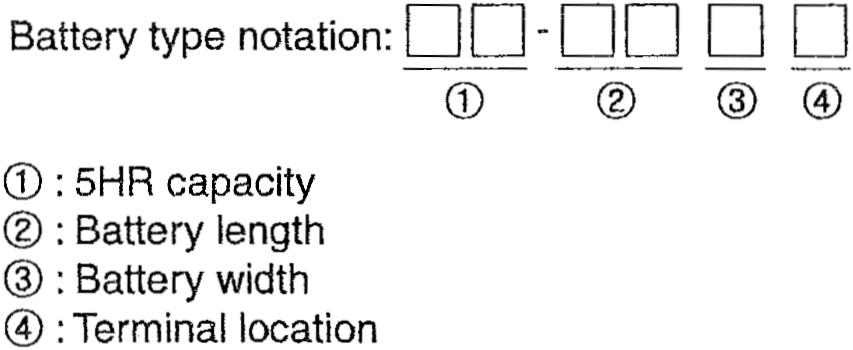

| Battery | Type | 44-21 GL |
| Cold cranking amperage [at -18°C (-0.4°F)] | 500 A | |
| Reserve capacity | 85 min | |
| Specific gravity [at 20°C (68°F)] | 1.280 ± 0.01 | |
CAUTION:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C (80.1°F).
