Hyundai
>>
2009
>>
Accent GLS, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Power Window Switch
>>
Circuit Diagram
Circuit Diagram

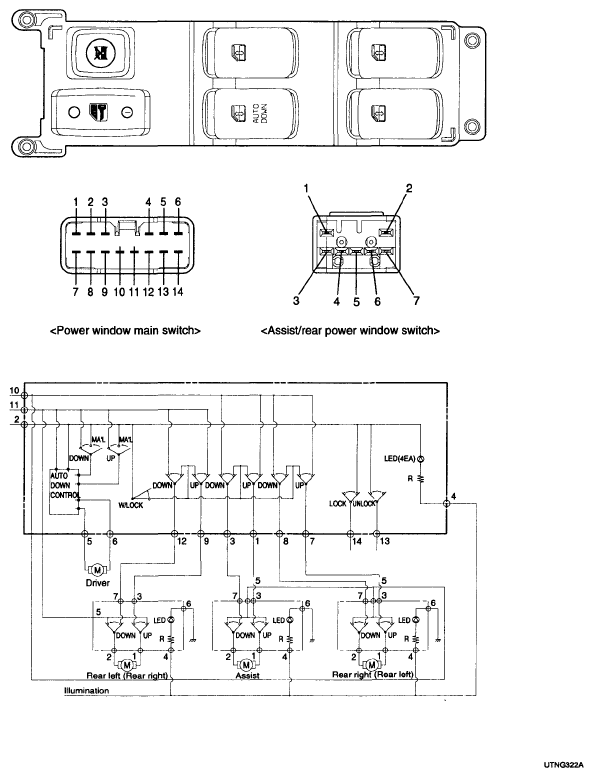

Fig 1: Power Window Switch - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
