Charging System: Alternator: Components

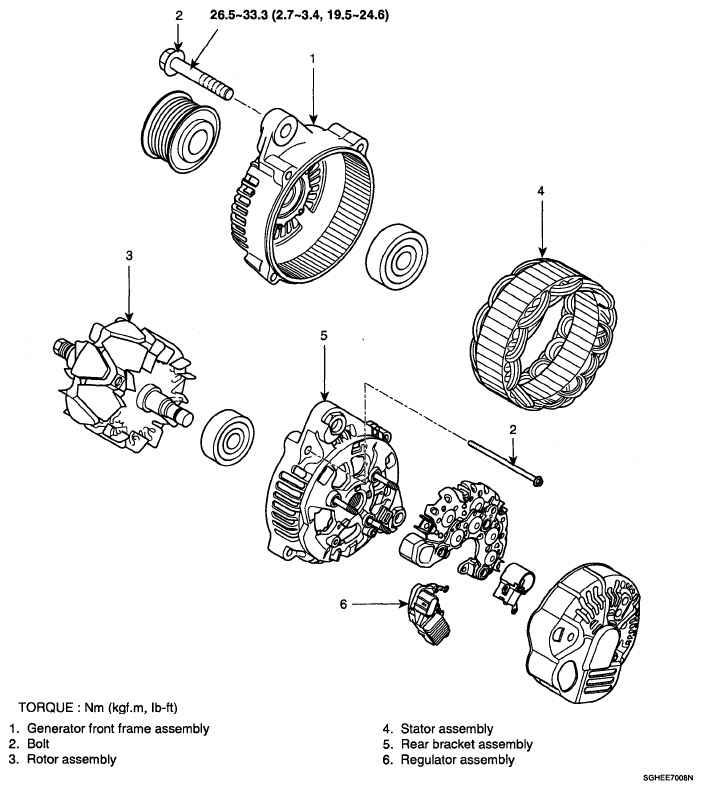

Fig 1: Identifying Alternator Components

G05329611

Courtesy of HYUNDAI MOTOR CO.
