Monitor SCANTOOL Data

  1. Connect scantool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "ENGINE SPEED, INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, GEAR POSITION" parameter on the scantool.
  4. Disconnect the solenoid valve connector and Perform the "STALL TEST".

    Specification: 2000~2700 engine RPM

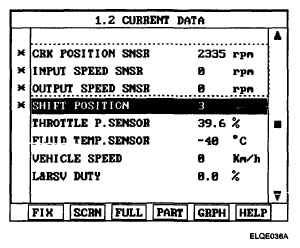

    Fig 1: Scan Tool Display - Shift Position
    G04811298Courtesy of HYUNDAI MOTOR CO.
