ETACS Module Input Signal Test

  1. Disconnect the wire connector from the ETACS module.
  2. Inspect the connector on wire harness side as shown in Fig 1-Fig 3.

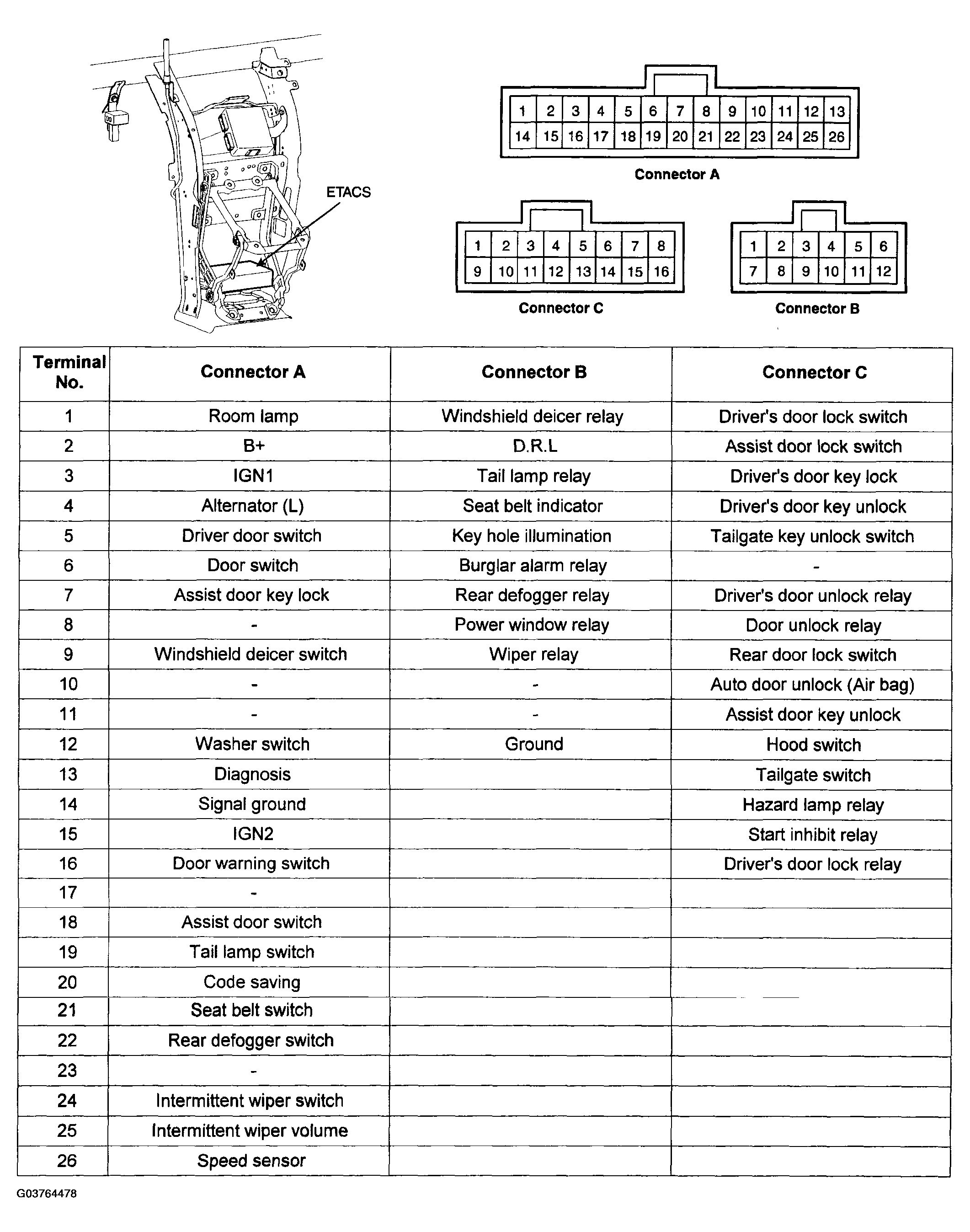

    Fig 1: ETACS Module Connector Terminals & Circuit Identification
    G03764478Courtesy of HYUNDAI MOTOR CO.

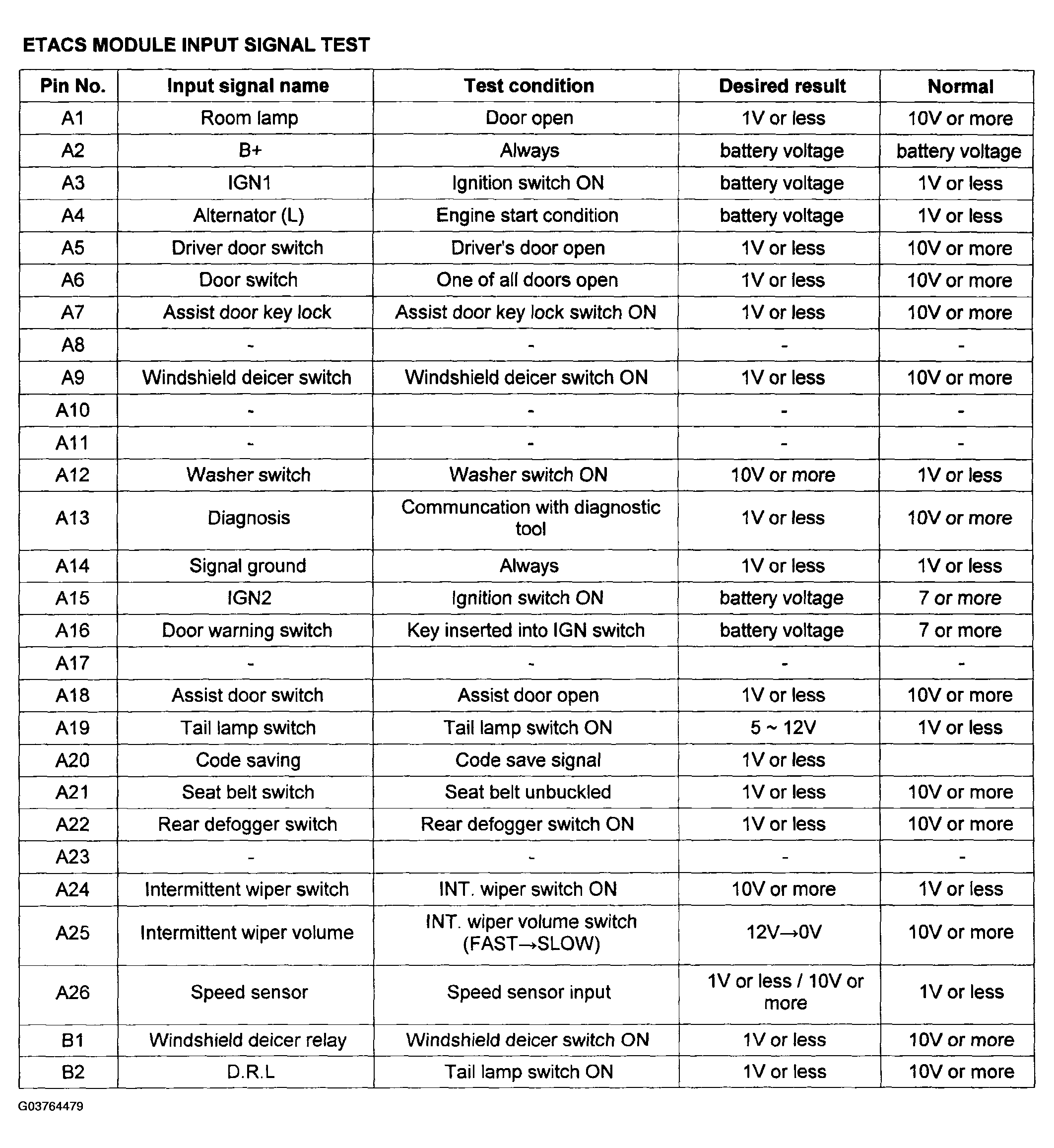

Fig 2: ETACS Module Input Signal Test (1 Of 2)
G03764479Courtesy of HYUNDAI MOTOR CO.

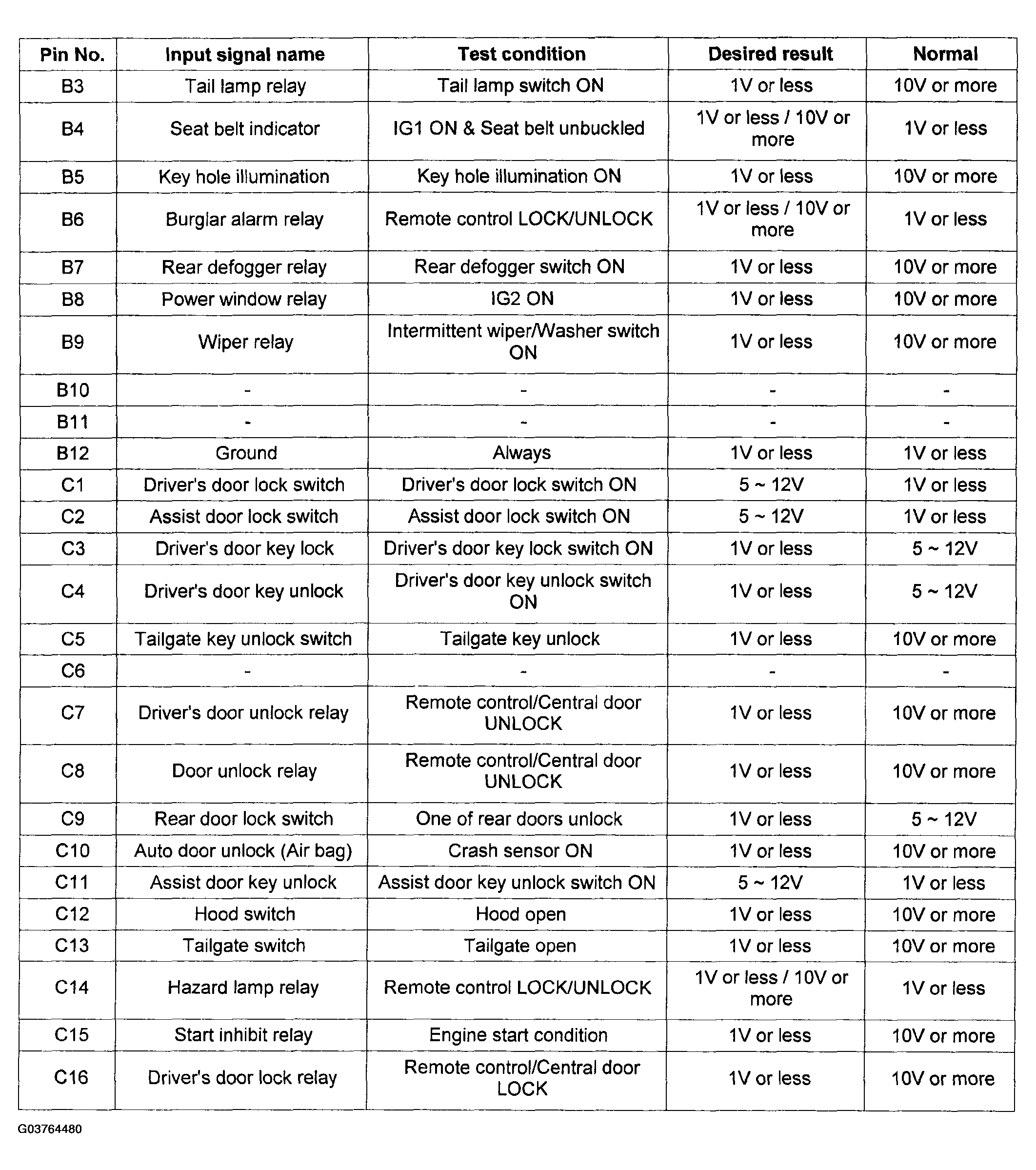

Fig 3: ETACS Module Input Signal Test (2 Of 2)
G03764480Courtesy of HYUNDAI MOTOR CO.
