Monitor SCANTOOL Data

  1. Connect scantool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "TRANSAXLE FLUID TEMPERATURE SENSOR" parameter on the scantool.

    Specification: Increasing Gradually

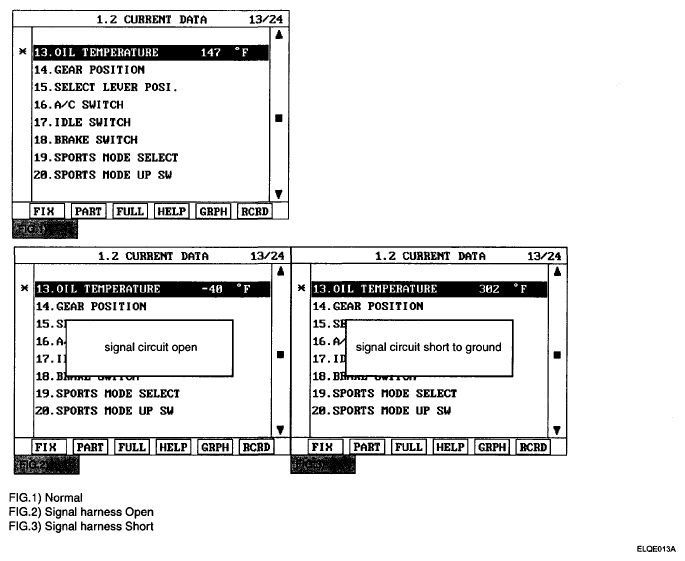

    Fig 1: Scan Tool Display - Temperature
    G04811266Courtesy of HYUNDAI MOTOR CO.
  4. Does "TRANSAXLE FLUID TEMPERATURE SENSOR" follow the reference data?

    YES  : --> Fault is intermittent caused by poor contact in the sensor's and/or TCM(PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO  : --> Go to " TERMINAL & CONNECTOR INSPECTION " procedure.
