Special Tools

SPECIAL TOOLS

Tool (Number and name) Illustration Use

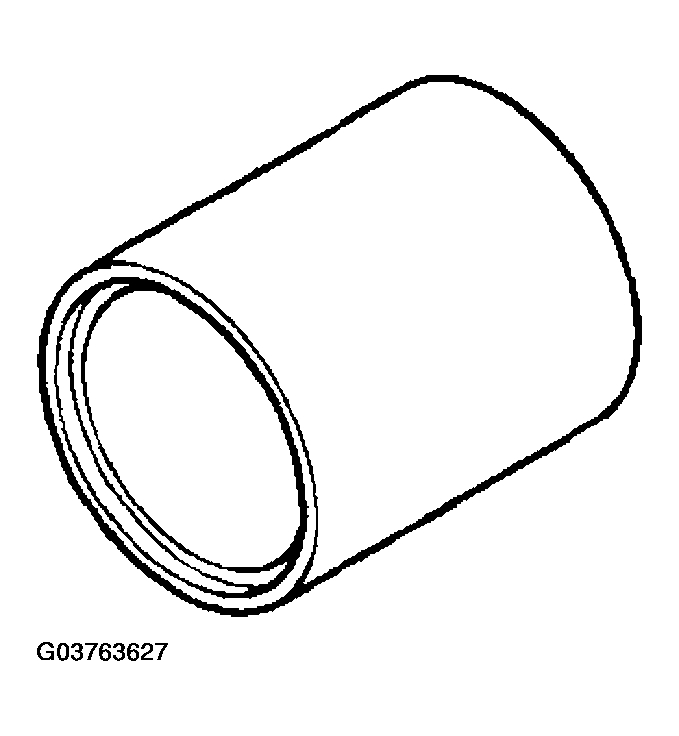

09261-21100 Mount bushing remover and installer
G03763627
 Removal & installation of lower arm bushing (G)

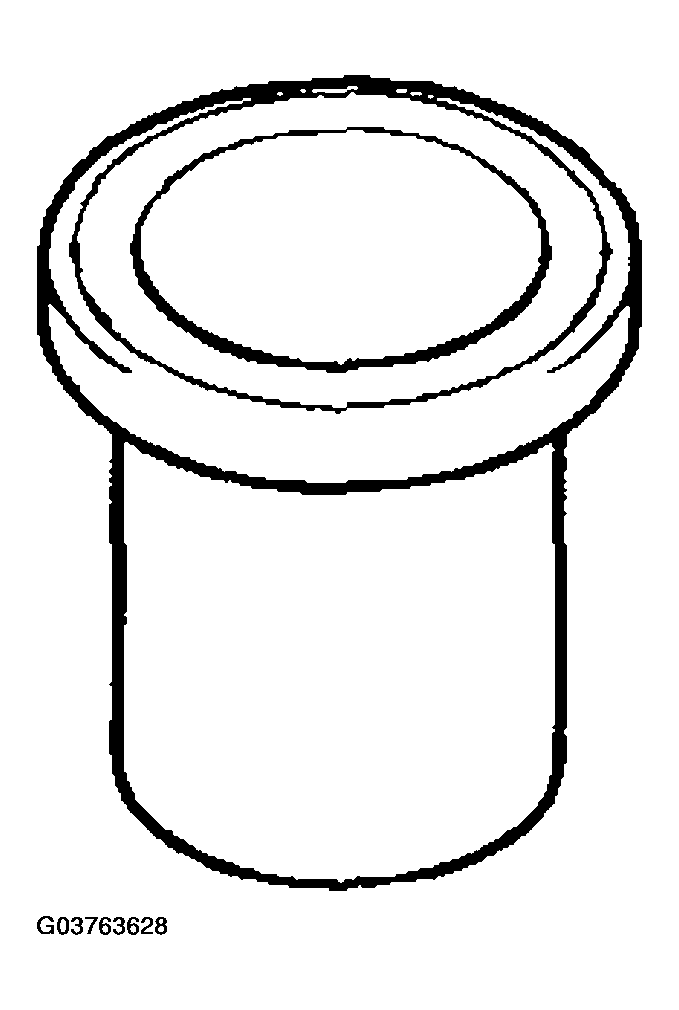

09214-32000 Mount bushing remover and installer
G03763628
 Removal & installation of lower arm bushing (G)

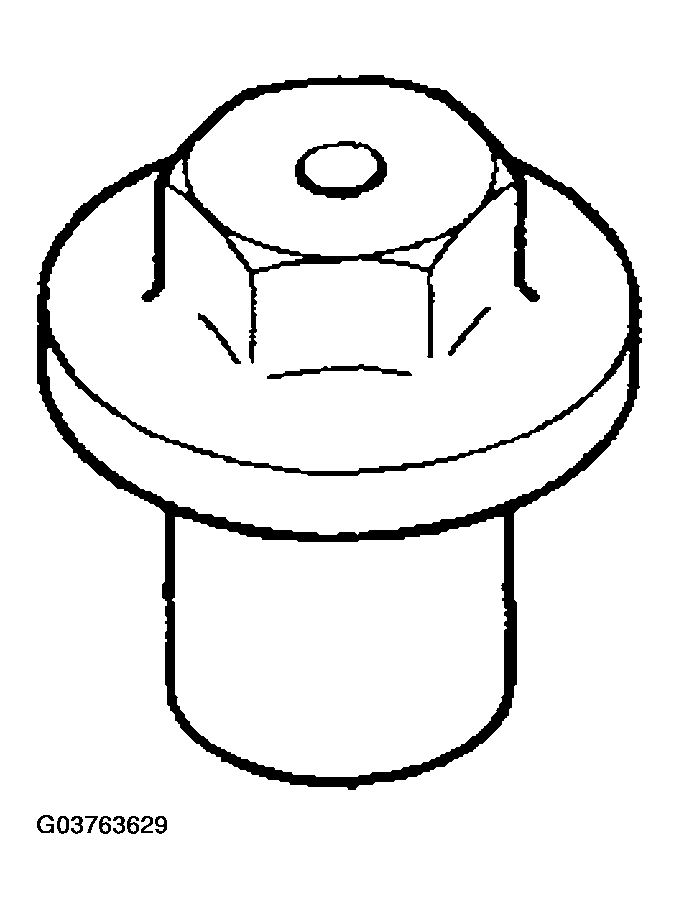

09529-21000 Trailing arm bushing remover installer
G03763629
 Removal & installation of trailing arm bushing

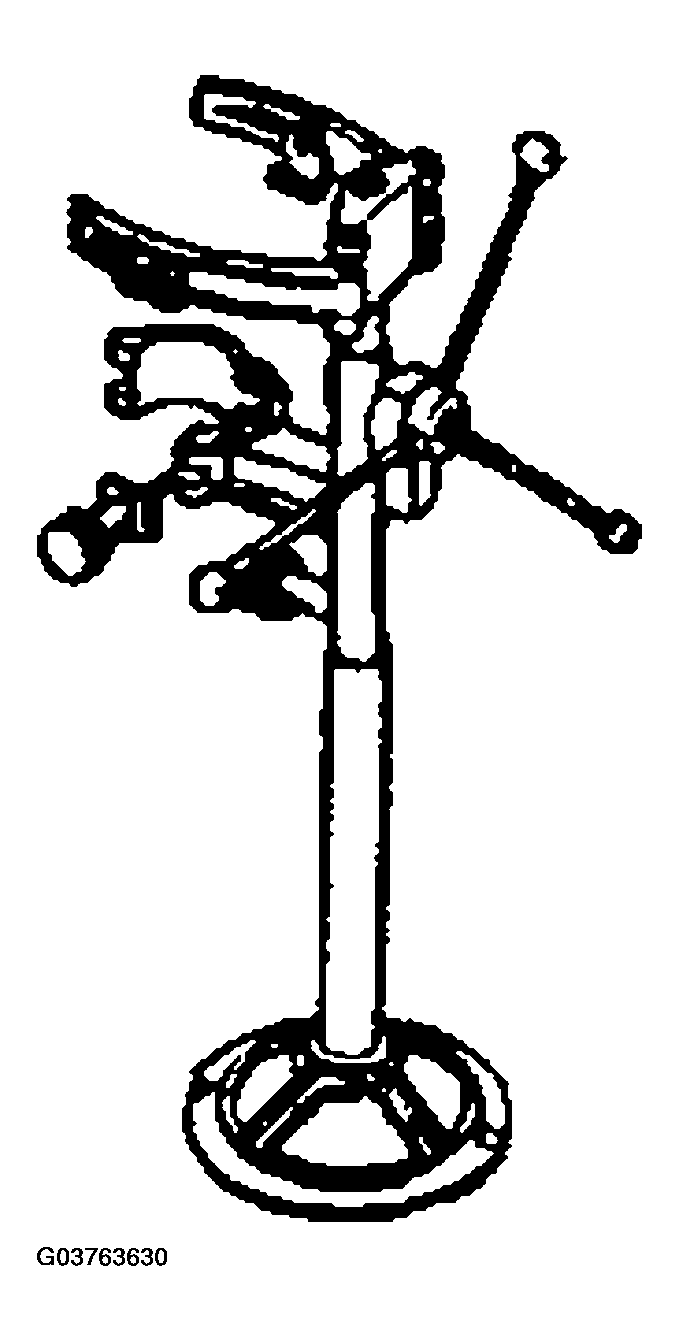

09546-26000 Strut spring compressor
G03763630
 Compression of the coil spring
