TUCSON (JM) Transaxle Control Module Update (Service Campaign T49) (SC T49)

Publication date: 2007-12-01
Reference number: SC T49
Supersedes refnos: 07-01-014

TUCSON (JM) TRANSAXLE CONTROL MODULE UPDATE (SERVICE CAMPAIGN T49)

TUCSON (JM) TRANSAXLE CONTROL MODULE UPDATE (SERVICE CAMPAIGN T49)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 07-01-014, Date of Issue:  December, 2007
HYUNDAI: 2008 TUCSON
GROUP: CAMPAIGN

REVISION HISTORY

IMPORTANT: DEALERS MUST PERFORM THIS CAMPAIGN ON ALL AFFECTED VEHICLES PRIOR TO CUSTOMER RETAIL DELIVERY AND WHENEVER AN AFFECTED VEHICLE IS IN THE SHOP FOR ANY MAINTENANCE OR REPAIR.

DESCRIPTION

This TSB provides reprogramming instructions for updating the transaxle control module for 2008 Tucson (JM) 2.0L and 2.7L vehicles at dealers.

APPLICABLE VEHICLES

Model; 2008 Tucson (JM) 2.0L and 2.7L vehicles

Applicable vehicle production date range: From May 10, 2007 to August 30, 2007.

NOTE: Verify the version of the ECM/TCM ROM ID before attempting to update the vehicle TCM software. Refer to ROM ID information table .

ROM ID INFORMATION TABLE

Tucson 2.0L

ROM ID INFORMATION - TUCSON 2.0L

ECM P/N ROM ID (CAL ID)
CURRENT NEW
39180-23133 M0N5M0T0 (TJM2C20NA9) M0N5N0T0 (TJM2C0NAA)

Tucson 2.7L

ROM ID INFORMATION - TUCSON 2.7L

2WD/4WD TCM P/N ROM ID (CAL ID)
CURRENT NEW
2WD 95440-39507 THF480-F1 (TJM2G27NC1) THF480-F2 (TJM2G27NC2)
4WD 95440-39517 THF481-F1 (TJM4G27NC1) THF481-F2 (TJM4G27NC2)

SERVICE PROCEDURE

CAUTIONS DURING REPROGRAMMING

  1. Make sure the battery has reasonable charge. If the vehicle has been in storage for several days, run the engine at idle for at least 10 minutes to ensure an adequate battery charge state for reliable reprogramming results.
  2. Turn off all lights (Do not leave headlight switch in auto mode) and all accessories (including heater/air conditioner/blower, radio, heated seats, rear defroster, etc.) to make certain the battery will not be discharged during reprogramming.
  3. Perform reprogramming with the ignition key in the ON position.
  4. Be careful not to disconnect any cables connected to the vehicle or the GDS during reprogramming.
  5. Do not start the engine during reprogramming.
  6. Do not turn the ignition switch OFF during reprogramming.

TCM/ECM REPROGRAMMING PROCEDURE

GDS INSTALLATION PROCEDURE

WARNING: Make sure that the battery symbol indicator at the bottom right tray of the GDS laptop shows at least 25% so there will be enough power to complete the reprogram; if it has less, charge the GDS laptop by connecting the power adaptor cable to it for at least 1/2 hour or leave it connected for the reprogram procedure if possible.
JM 2.7L

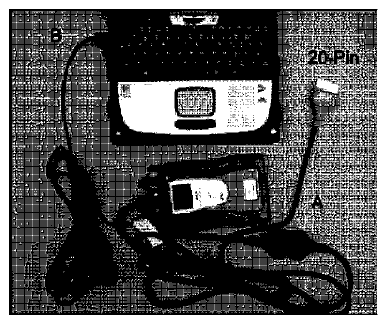

  1. Connect the 20-pin DLC cable (A) to the 16-pin DLC cable.
  2. Connect the USB cable (B) to the VCI and GDS.
    G09228760

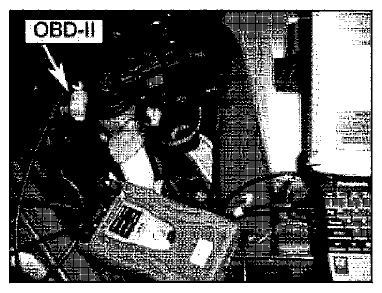

  3. Connect the 20-pin connector to the OBD-II connector located in the engine compartment.
  4. Turn the VCI on.
    G09228761
JM 2.0L

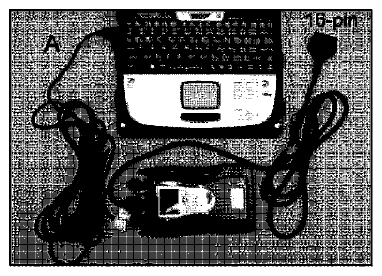

  1. Connect the USB cable (A) between the GDS and the VCI.
    NOTE: The USB cable is necessary because wireless communication is not available for the update.
  2. Connect the 16-pin DLC connector from the VCI into the DLC located under the driver's side dash.
    G09228762
  3. Turn the VCI on.

INTERNET UPDATE

Confirm your GDS has Local Version 1.36 or higher. If not, complete the Internet Update according to the instructions on hmaservice.com.

AUTOMATIC REPROGRAMMING PROCEDURE

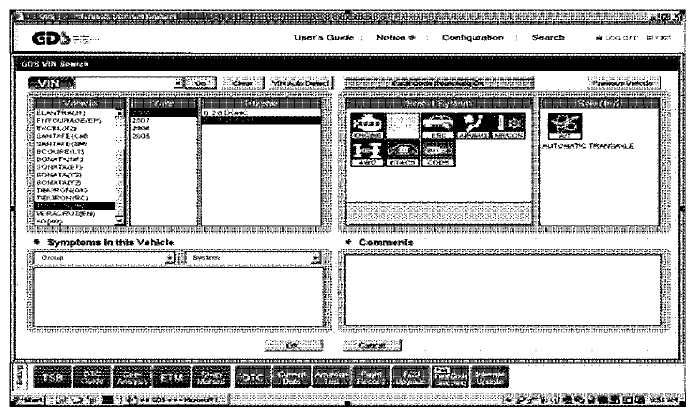

  1. Enter the vehicle information manually  by entering the vehicle, model year, and select AT.  Select OK  .
    G09228763

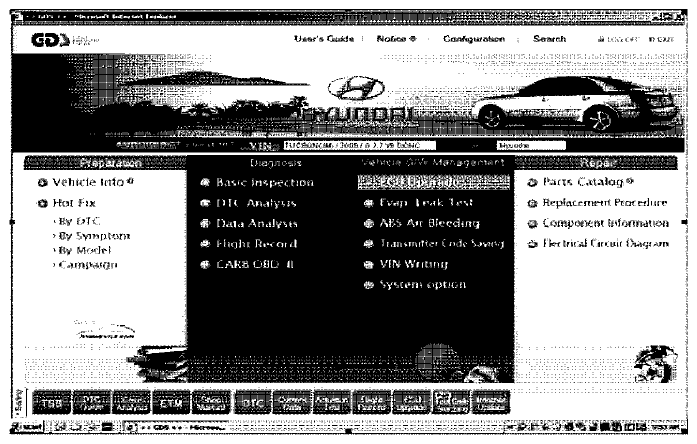

  2. Select ECU Upgrade:
    G09228764

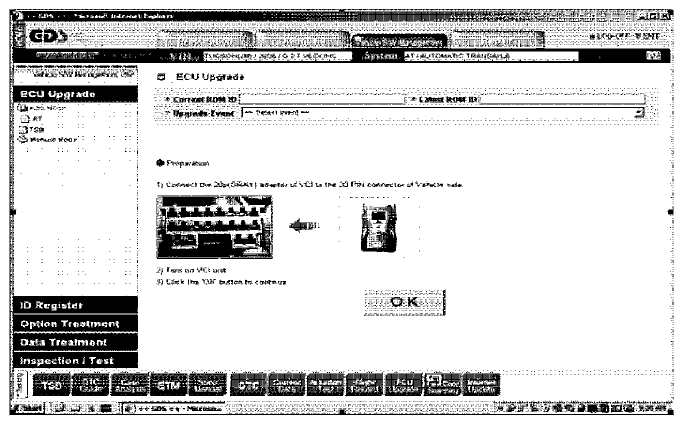

  3. Select Auto Mode  and AT  under ECU Upgrade column. Select OK  .
    G09228765

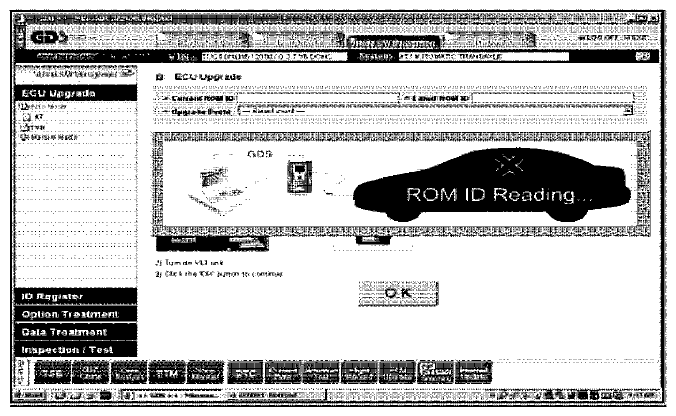

  4. After selecting OK, the GDS will read the ROM ID as follows:
    G09228766

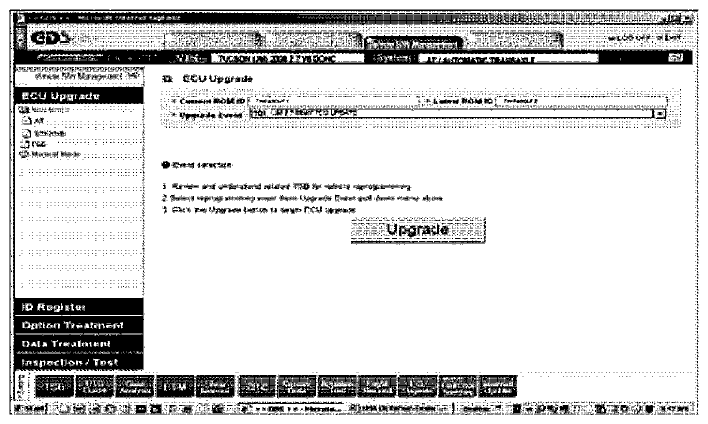

  5. After the Current ROM ID is displayed select the upgrade event.
    • Upgrade Event "100. JM 2.0 08MY TCU Update" for Tucson 2.0L
    • Upgrade Event "101. JM 2.7 08MY TCU Update" for Tucson 2.7L
      G09228767

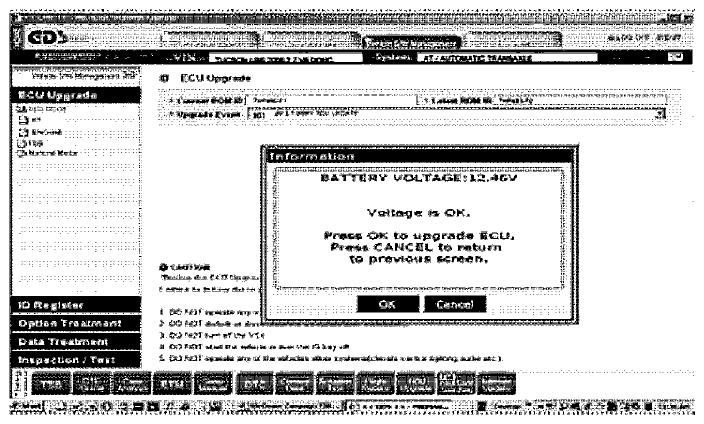

  6. Select OK  at the next screen if the results indicate Voltage is OK.
    G09228768

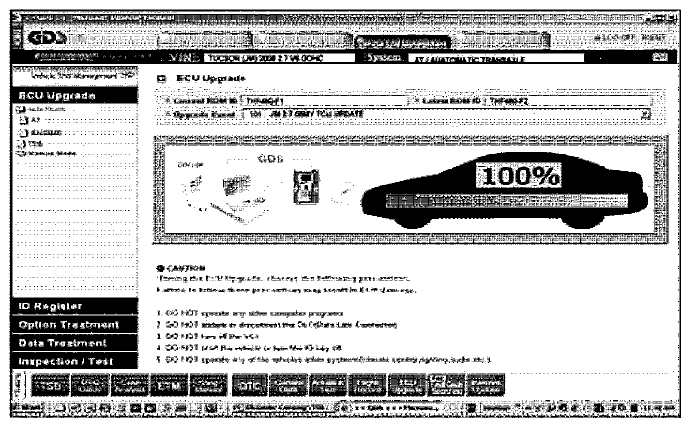

  7. The progress bar will indicate when reprogramming reaches 100%. Wait until the next screen indicates reprogramming is complete:
    G09228769

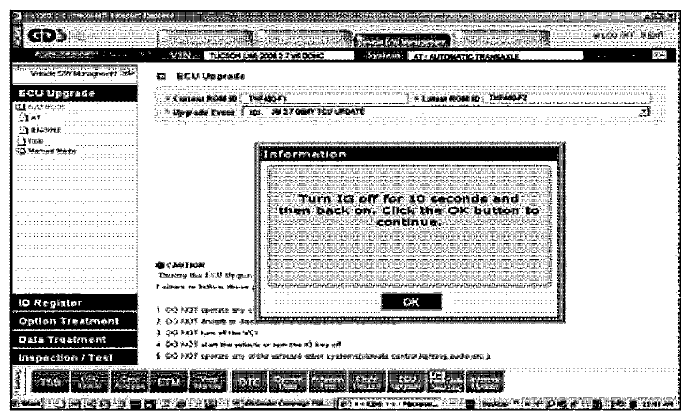

  8. Turn the ignition switch OFF for at least 10 seconds then turn back ON to finish.
    G09228770

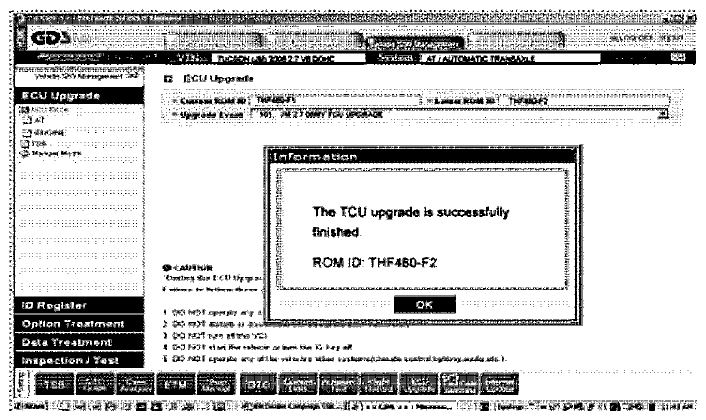

  9. The GDS will confirm that TCU reprogramming is successfully finished:
    G09228771
  10. Check for any engine or transmission Diagnostic Trouble Codes (DTCs) and erase any codes.
  11. Turn the ignition switch OFF for about 20 seconds and then start the engine to confirm proper operation of the vehicle.

    MANUAL REPROGRAMMING PROCEDURE

    CAUTION:
    • Manual reprogramming must be performed only when automatic reprogramming fails.
    • If automatic reprogramming fails, turn the ignition switch OFF for about 20 seconds, turn the key to the ON position and then perform manual reprogramming.

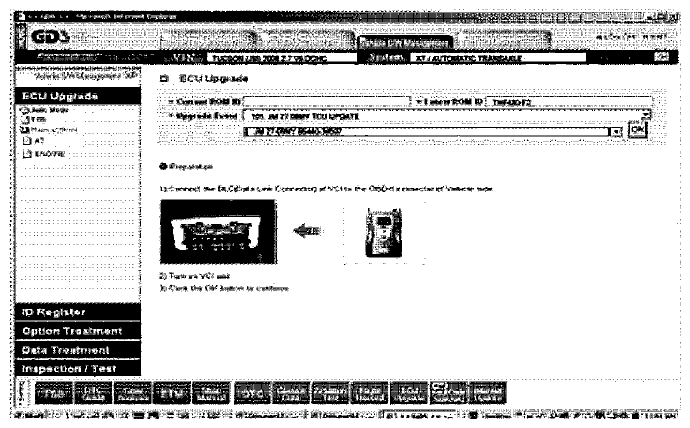

    • Select Manual Mode  and AT  under ECU Upgrade column. Select OK:
      • Upgrade Event "100. JM 2.0 08MY TCU Update" for Tucson 2.0L
      • Upgrade Event "101. JM 2.7 08MY TCU Update" for Tucson 2.7L
        G09228772
    MODEL PASSWORD DESCRIPTION

    MODEL ECM/TCM P/N PASSWORD
    JM 2.0L 39180-23113 3113
    39180-23133 3133
    JM 2.7L 95440-39507 (2WD 9507
    95440-39517 (4WD) 9517

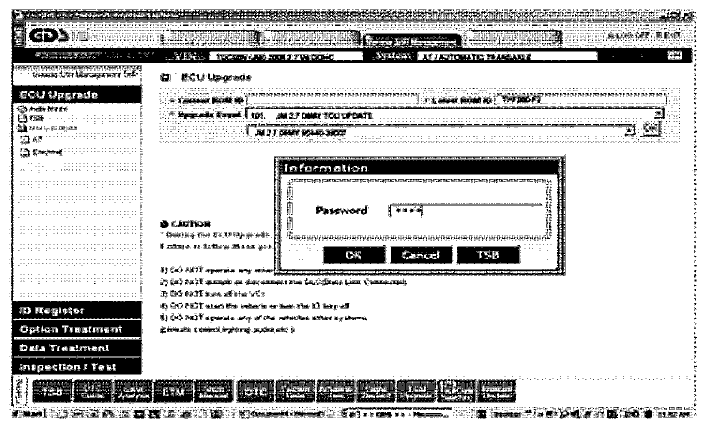

  12. Enter the appropriate Password  from the above table and then select OK:
    G09228773

Perform the TCU update in accordance with the instructions shown on the GDS screen.

WARRANTY INFORMATION

WARRANTY INFORMATION

OP CODE OP NAME OP TIME
70B056R1 TCM Update (Dealer) 0.3 Hours
NOTE: Submit claim using campaign claim screen.
