Signal Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- IG KEY OFF, ENG OFF
- 4WD ECM connector and TCS module: Disconnect.

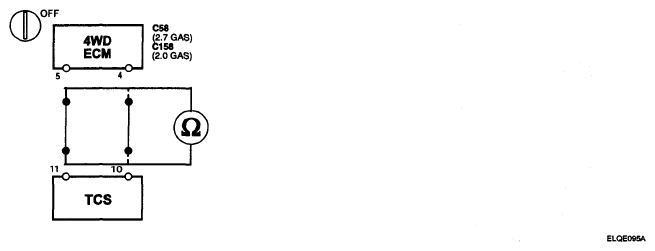

- Measure resistance between terminal 5 of 4WD ECM harness connector and terminal 11 of TCS control module harness connector.
- Measure resistance between terminal 4 of 4WD ECM harness connector and terminal 10 of TCS control module harness connector.
Specification: Approx. ∞Ω
Is resistance display near the specified value?
YES : --> Replace with normal TCS control module temporarily and check if vehicle runs normally. If trouble disappears, replace TCS control module.
--> If problem is solved, go to the "VERIFICATION OF VEHICLE REPAIR ".
NO : --> Repair open circuit.
--> If problem is solved, go to the "VERIFICATION OF VEHICLE REPAIR ".
