Section 5 (Transfer Case Assembly)
>>
DTC Troubleshooting Procedure
>>
DTC P1728 EMC Open/Shorted To Battery
>>
Waveform Inspection
Waveform Inspection
WARNING:
This page is about a different variant/trim than selected.

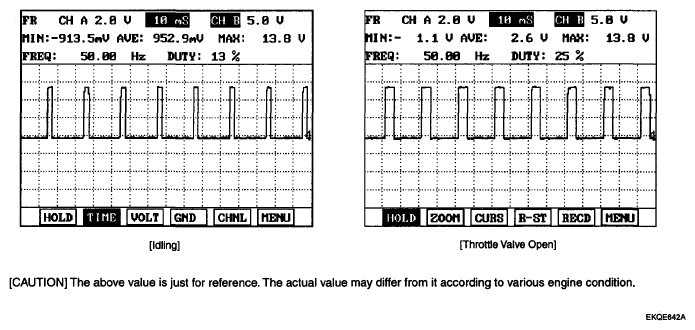

Fig 1: Throttle Valve Open And Idling Waveform Graph
Courtesy of HYUNDAI MOTOR CO.
