Ground Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

EMC output line short to ground inspection
1. IG KEY OFF, ENG OFF
2. Electric Magnet Valve Clutch connector: Disconnect.
3. Measure resistance between terminal 1 of Electric Magnet Valve Clutch harness connector and chassis ground.
  Specification: Approx. ∞Ω

  Is resistance display near the specified value?

  YES : --> Proceed to next inspection procedure.

  NO : --> Repair ground to short circuit of EMC output harness.

  --> If problem is solved, go to the "VERIFICATION OF VEHICLE REPAIR ".

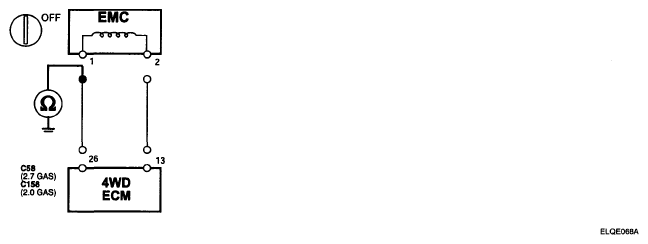

  Fig 1: Ground To Short Circuit Of EMC Output Harness - Circuit Diagram
  Courtesy of HYUNDAI MOTOR CO.
