Section 1 (Engine (G6BA-GSL 2.7L))
>>
Timing System
>>
Timing Belt
>>
Component
Timing Belt: Component
WARNING:
This page is about a different variant/trim than selected.

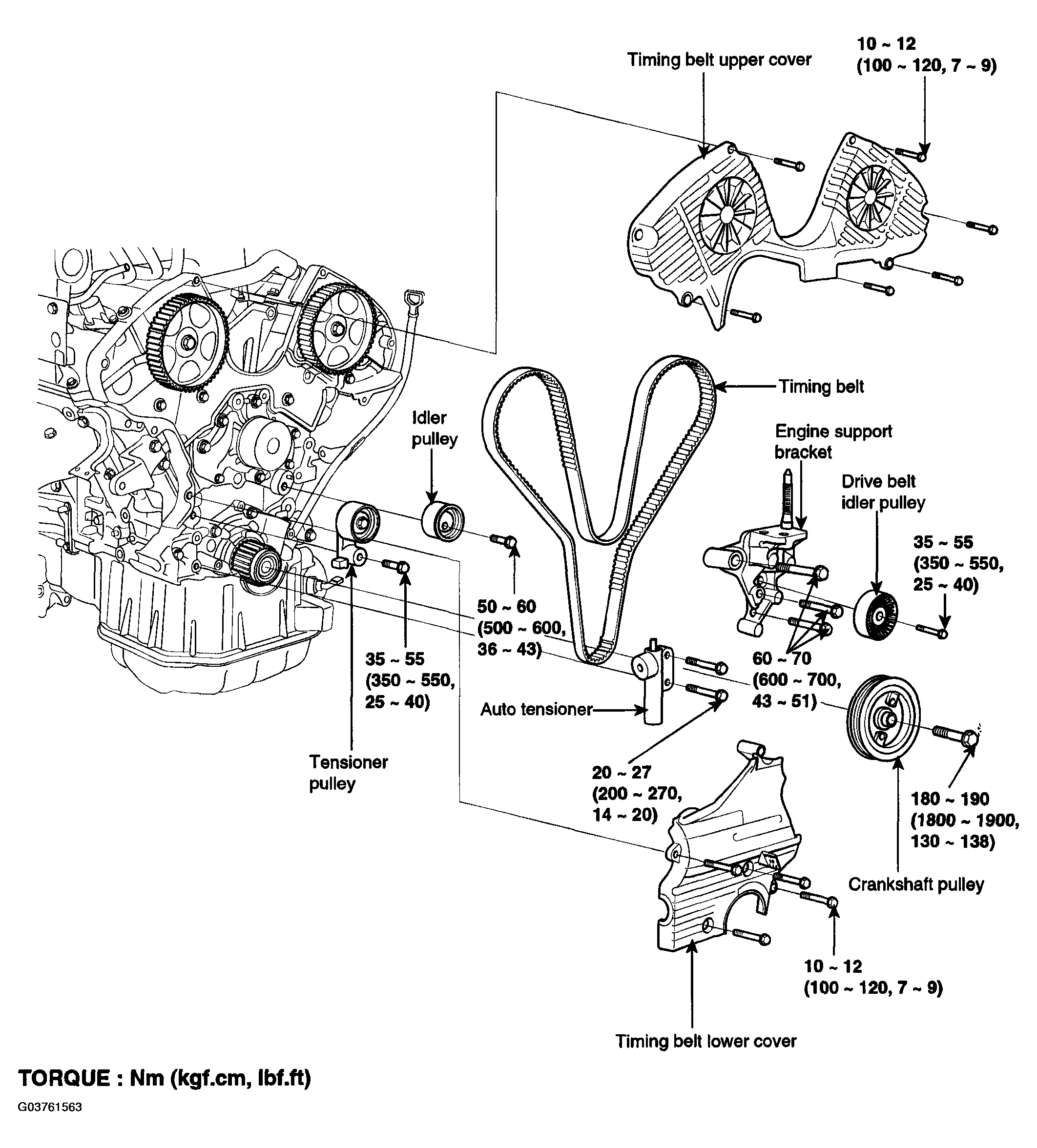

Fig 1: Timing System Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
