Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

Install the intake manifold and gasket.
Tightening torque

19 ~ 21 Nm (190 ~ 210 kgf.cm, 14 ~ 15 lbf.ft)

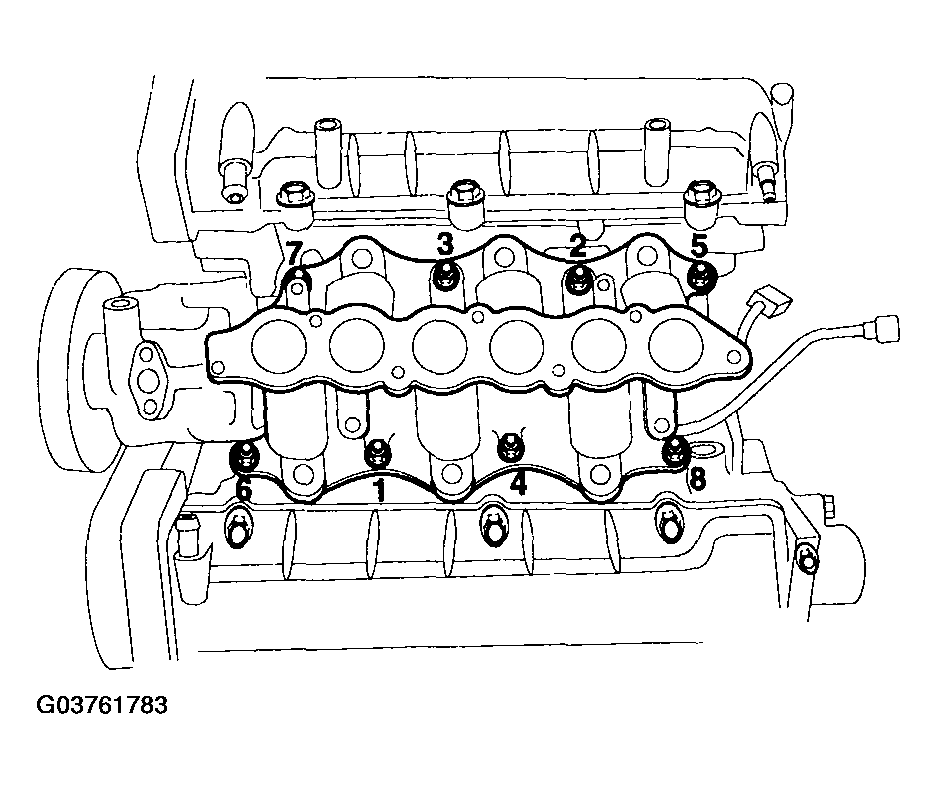

Fig 1: Intake Manifold Bolt Installation Sequence
Courtesy of HYUNDAI MOTOR CO.
Install the injector assembly (Figure). See FUEL SYSTEM (G6BA - GSL 2.7) article.
Install the surge tank assembly (A).
1. Install the surge tank assembly.
  Tightening torque

  15 ~ 20 Nm (150 ~ 200 kgf.cm, 11 ~ 15 lbf.ft)

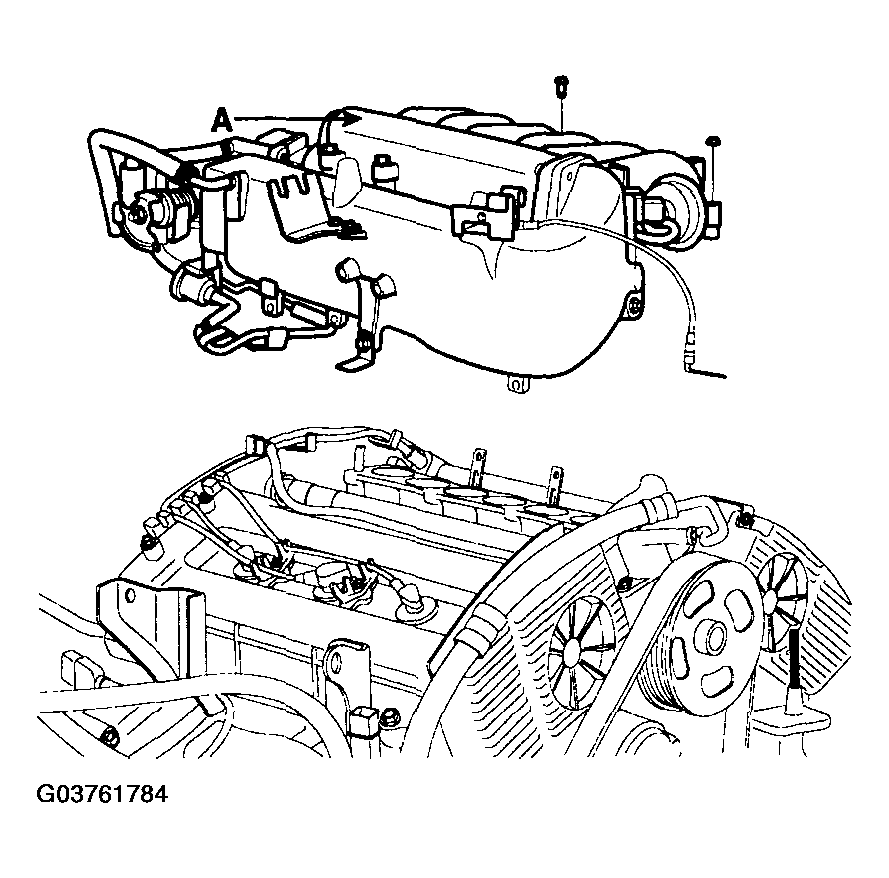

  Fig 2: View Of Surge Tank Assembly
  Courtesy of HYUNDAI MOTOR CO.
2. Install the surge tank stay.
  Tightening torque

  15 ~ 20 Nm (150 ~ 200 kgf.cm, 11 ~ 15 lbf.ft)
3. Install the ground cable.
4. Connect the VIS actuator connector.
5. Connect the IAT sensor connector.
6. Connect the PCV hose.
7. Connect the brake booster vacuum hose.
8. Connect the PCSV hose.
9. Connect the PCSV connector.
10. Connect the injector connector.
11. Connector the VIS actuator connector.
12. Connector the ISA connector.
13. Connector the TPS connector.
14. Connector the actuator cable.
Install the air cleaner hose.
Install the engine cover.
